Casdoor Authentication

About

This plugin incorporates SSO in Jenkins with Casdoor

Installation

TODO

Usage

You can refer to Casdoor Official Doc.

The following are some of the names in the configuration:

CASDOOR_HOSTNAME: Domain name or IP where Casdoor server is deployed.

JENKINS_HOSTNAME: Domain name or IP where Jenkins is deployed.

Step1. Deploy Casdoor and Jenkins

Firstly, the Casdoor and Jenkins should be deployed.

After a successful deployment, you need to ensure:

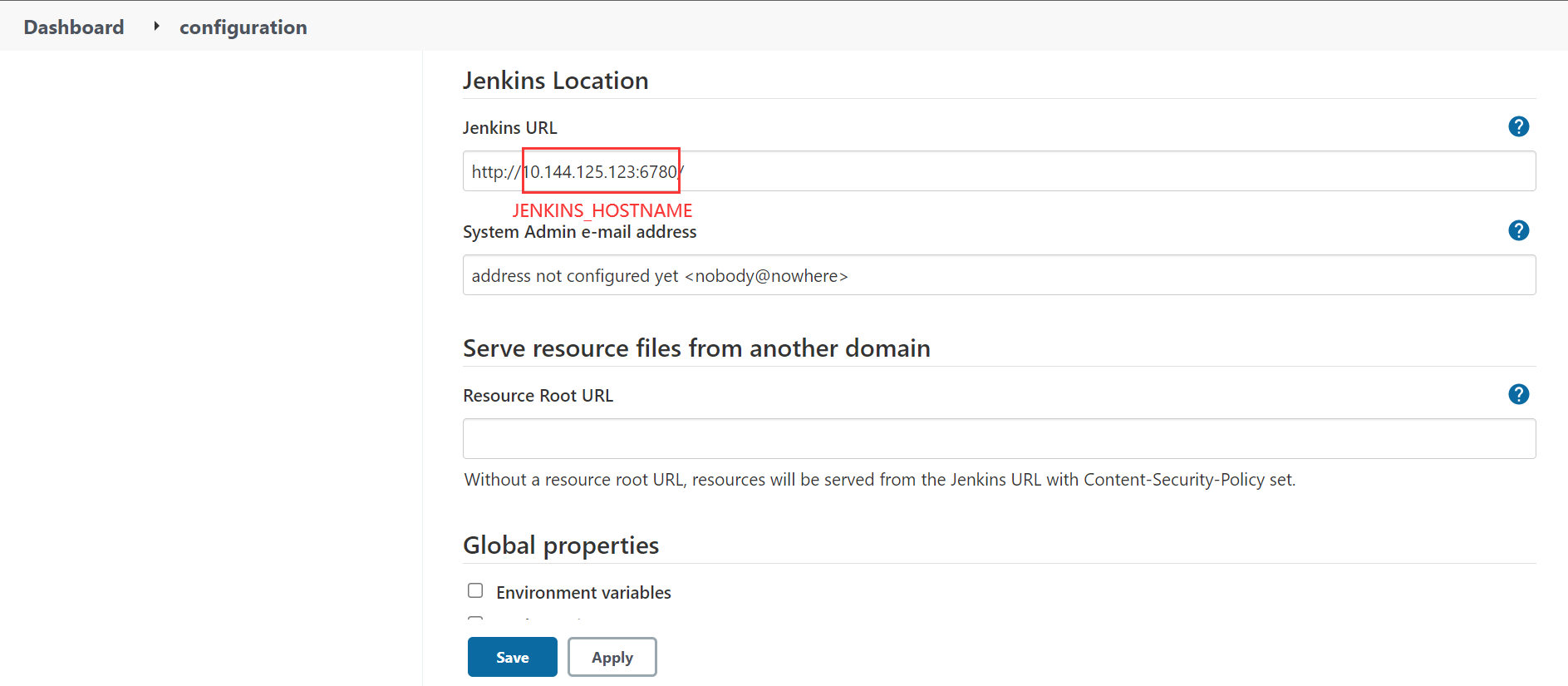

  1. Set Jenkins URL(Manage Jenkins -> Configure System -> Jenkins Location) to JENKINS_HOSTNAME. Jenkins URL
  2. Casdoor can be logged in and used normally.

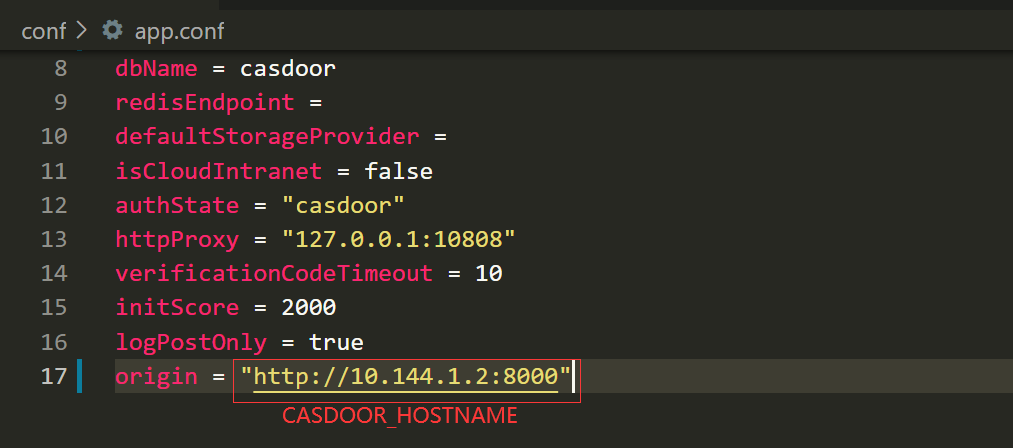

  3. Set Casdoor's origin value (conf/app.conf) to CASDOOR_HOSTNAME. Casdoor conf

Step2. Configure Casdoor application

  1. Create or use an existing Casdoor application.

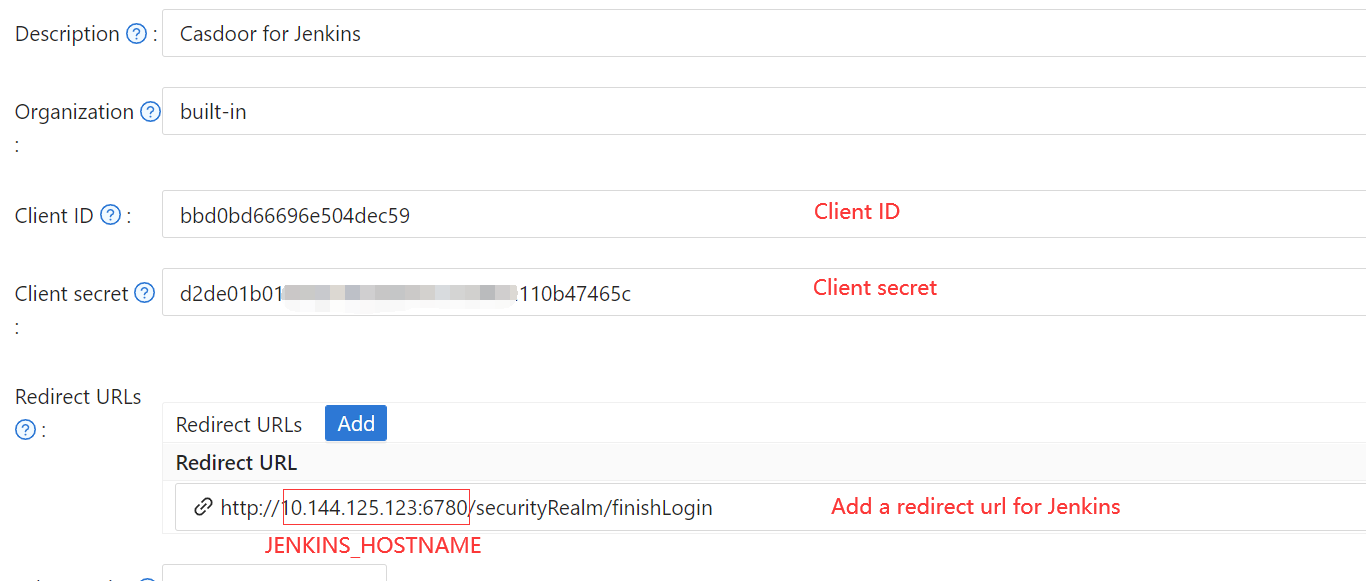

  2. Add a redirect url: http://JENKINS_HOSTNAME/securityRealm/finishLogin Casdoor Application Setting
  3. Add provider you want and supplement other settings.

Not surprisingly, you can get two values ​​on the application settings page: Client ID and Client secret like the picture above, we will use them in next step.

Open your favorite browser and visit: http://CASDOOR_HOSTNAME/.well-known/openid-configuration, you will see the OIDC configure of Casdoor.

Step3. Configure Jenkins

Now, you can install Casdoor plugin from the market or by uploading its jar file.

After completing the installation, go to Manage Jenkins -> Configure Global Security.

Suggestion: Back up the Jenkins config.xml file, and use it to recover in case of setup errors.

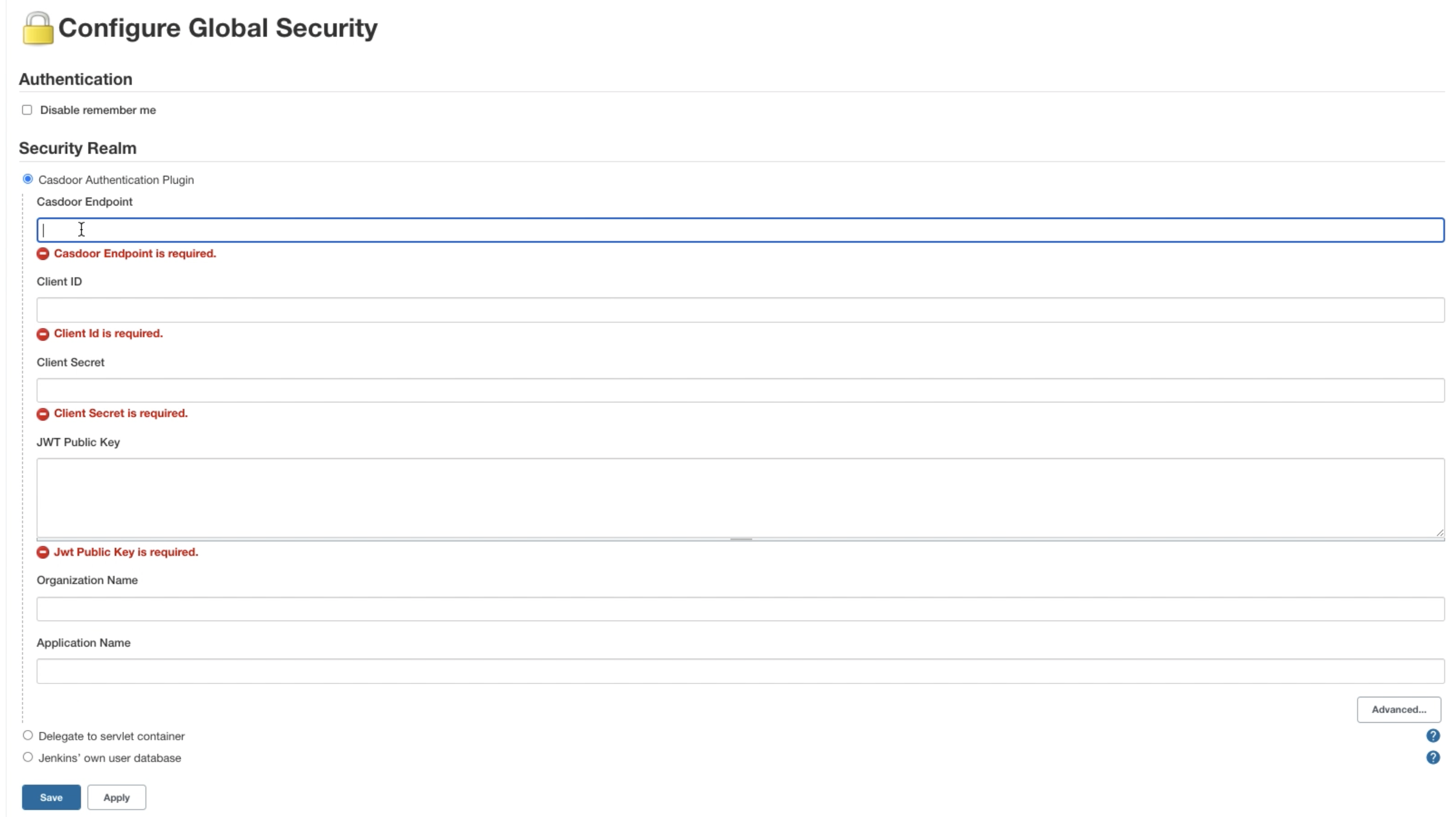

Jenkins' Setting

  1. In Security Realm, select "Casdoor Authentication Plugin".
  2. In Casdoor Endpoint, specify the CASDOOR_HOSTNAME noted above.
  3. In Client ID, specify the Client ID noted above.
  4. In Client secret, specify the Client secret noted above.

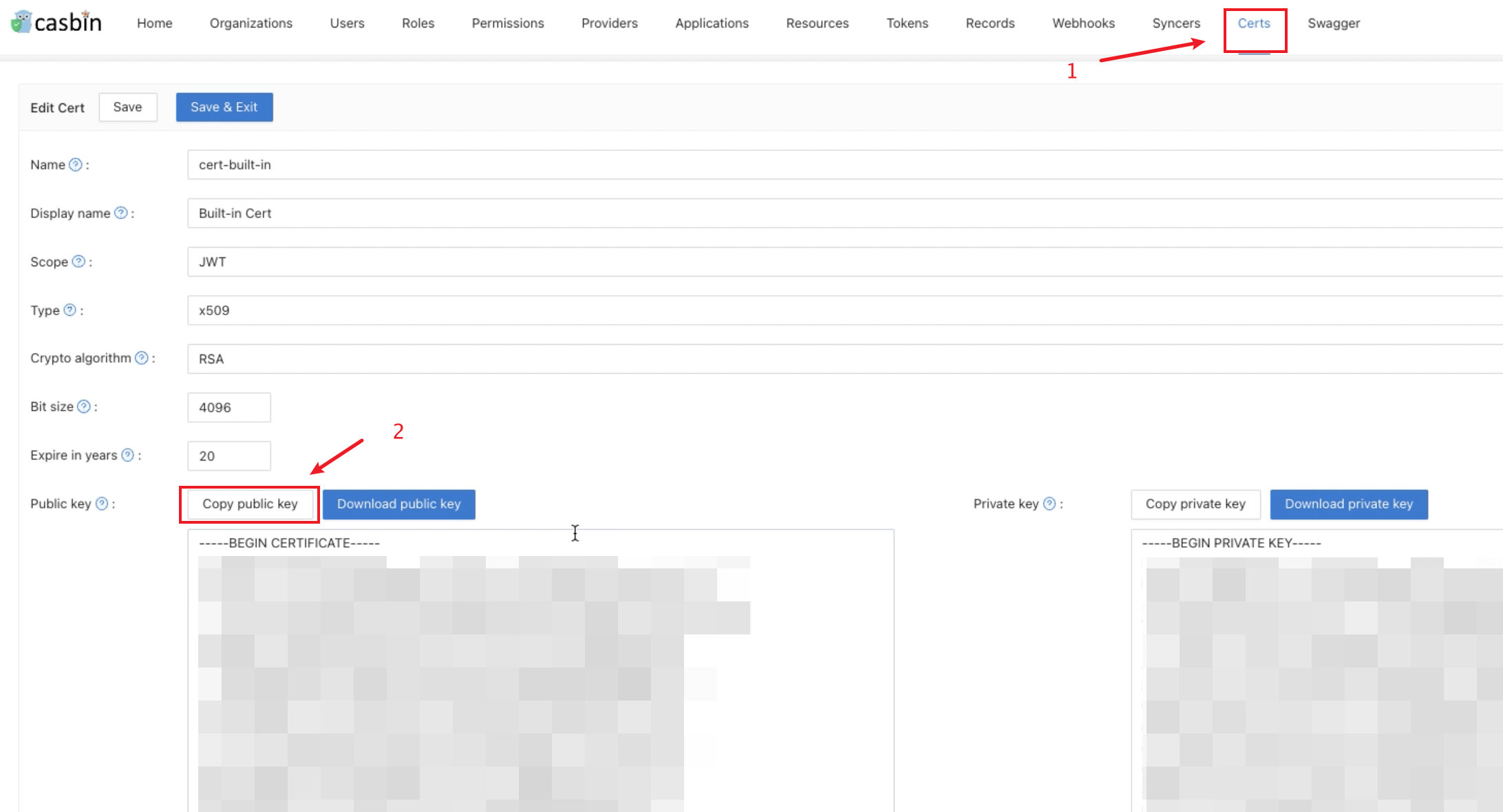

  5. In JWT Public Key, specify the public key used to validate JWT token. You can find the public key in Casdoor by clicking Cert at the top. After clicking edit your application, you can copy your public key in the following page. JWT Public Key
  6. Organization Name and Application Name is optional. You can specify your organization and application to verify users in other organizations and applications. If they are empty, the plugin will use the default organization and application.
  7. In the Authorization section, check “Logged-in users can do anything”. Disable “Allow anonymous read access”.
  8. Click save.

Now, Jenkins will automatically redirect you to Casdoor for authentication.
