- NeuVector Vulnerability Scanner Jenkins Plugin
- Description
- Notes
- Requirements
- Setup the configuration in Jenkins
- Setup K8s plugin in Jenkins
This is a Jenkins Plugin to do security vulnerabilities scanning on registries and local images with the NeuVector Scanner.
- It supports two scan modes. By default, it uses the
Controller & Scanner
mode.- Standalone mode, run the service inside the docker images
Controller & Scanner mode
, run the service inside external controller
- Support running jenkins pod with K8s agent mode from 2.2+
- Support multi-controller endpoint from 2.4+
-
For the
Controller & Scanner
mode, you need to install the NeuVector controller and scanner in the network. To scan the local image (the image on the Jenkins machine), theController & Scanner
needs to be installed on the node where the image exists. -
For the standalone mode, Docker must be installed on the same host with Jenkins. Also, add jenkins user to the docker group.
sudo usermod -aG docker jenkins
-
If you run the Jenkins as a container, remember to mount a host directory
-v /var/jenkins_home:/var/jenkins_home
For example,
docker run -p 8080:8080 -v /var/jenkins_home:/var/jenkins_home -v /var/run/docker.sock:/var/run/docker.sock -v $(which docker):$(which docker) --name=jenkins jenkins/jenkins:lts
If you want to mount a host directory which is not
/var/jenkins_home
, for example/home/neuvector/jenkins_home
. Please remember to add an environment variableJENKINS_MOUNT_PATH='/home/neuvector/jenkins_home'
For example,
-
docker CLI
docker run -p 8080:8080 -e JENKINS_MOUNT_PATH='/home/neuvector/jenkins_home' -v /home/neuvector/jenkins_home:/var/jenkins_home -v /var/run/docker.sock:/var/run/docker.sock -v $(which docker):$(which docker) --name=jenkins jenkins/jenkins:lts
-
docker-compose.yml
jenkins-node: image: jenkins/jenkins:lts container_name: jenkins-node user: root ports: - 8080:8080 - 50000:50000 volumes: - /home/neuvector/jenkins_home:/var/jenkins_home - /usr/bin/docker:/usr/bin/docker - /var/run/docker.sock:/var/run/docker.sock:ro environment: - JENKINS_MOUNT_PATH=/home/neuvector/jenkins_home
-
After installing the plugin, you will find the NeuVector Vulnerability Scanner
section in the global configuration page (Jenkins UI > Manage Jenkins > Configure System), and the first section you will see is to configure Controller & Scanner
, then is the Standalone section.
- Once you have done the following settings, you may click the
Test Connection
button to validate the values. It will showConnection Success
or an error message. - Supports multi-controller mode, allowing users to set up multiple controllers as servers and select one when generating the pipeline. If no controller is selected, the one named "default" will be chosen automatically.
- The controller endpoint name must be unique. If a duplicate is detected, it will be automatically removed when the user clicks the save button.

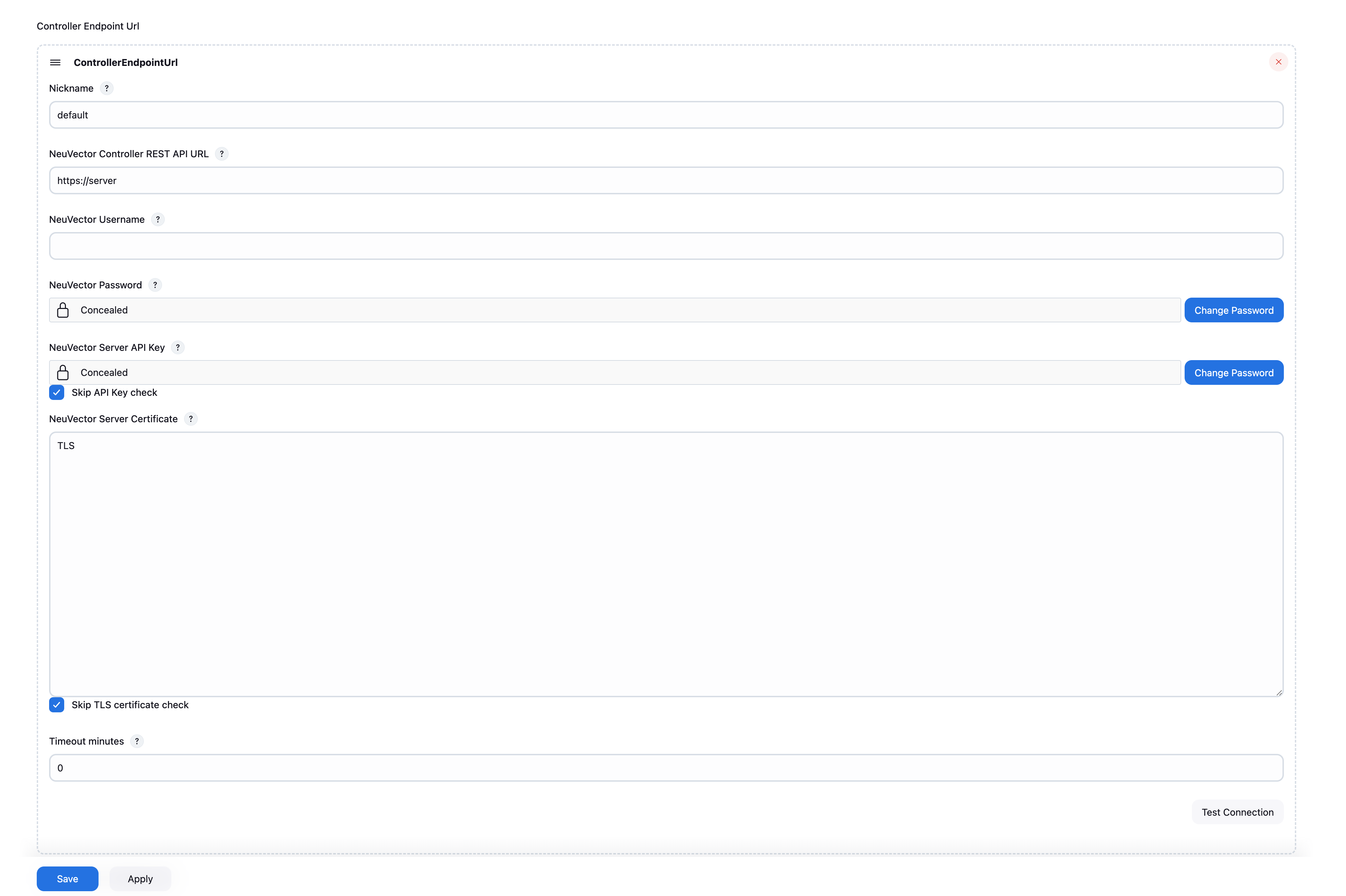

- Enter values for the
Controller & Scanner
mode which includes the NeuVector Scanner source name, controller rest api url, username, and password. - TLS certificate check will check the consistency of between the certificate you provide in NeuVector Server Certificate and the server. Here is how we find the certificate in your server.
- Access into the pod of the expose cluster
- File location should
/etc/neuvector/certs/ssl-cert.pem
- Copy the content and paste it here as the certificate.
- You can disable TLS check by by clicking "Skip TLS certificate check".
- The timeout minutes value will terminate the build step within the time entered. The default value of 0 means no timeout will occur

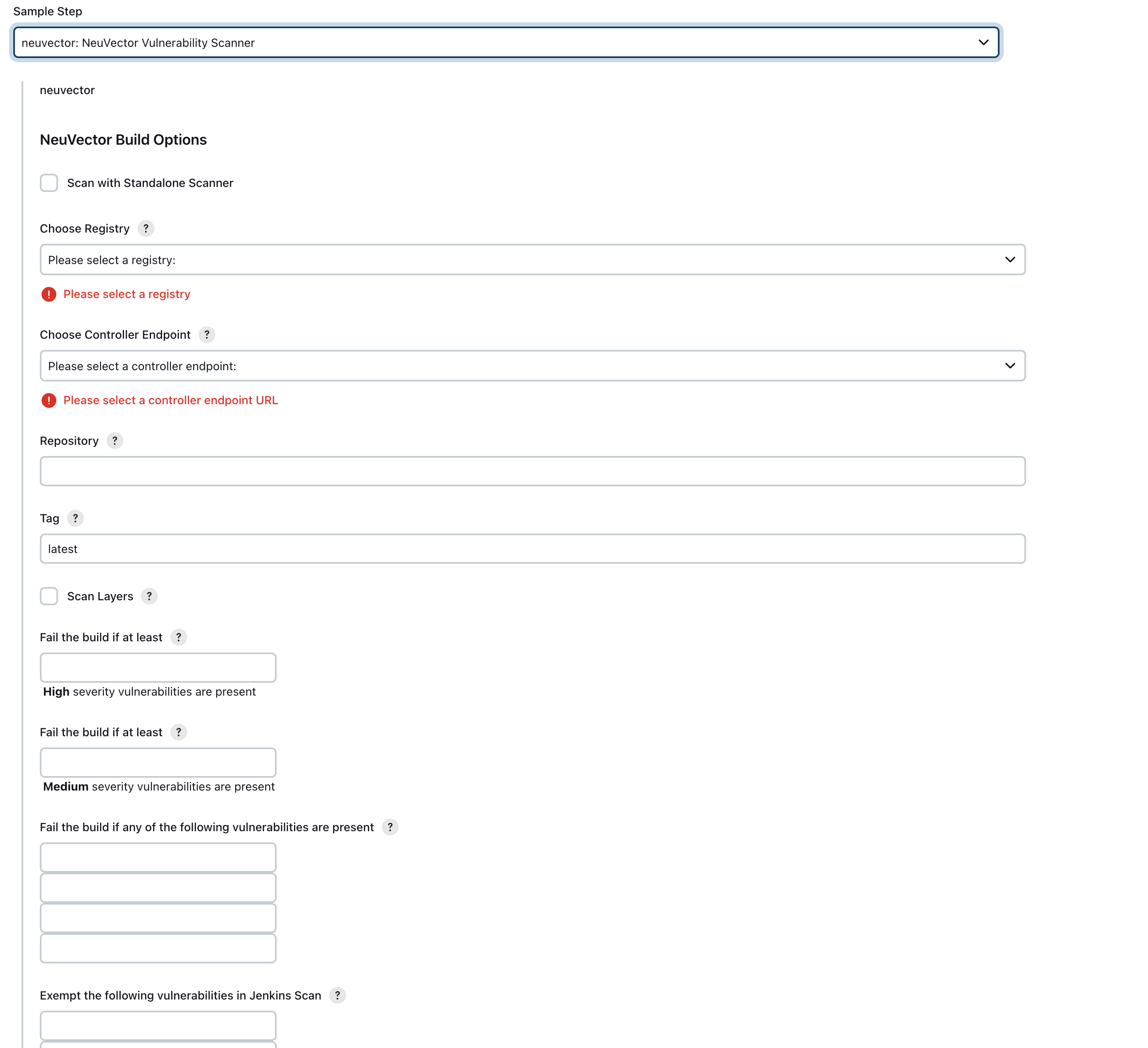

In your project configuration page, choose the NeuVector Vulnerability Scanner plugin
from the drop down menu in the 'Add build step' / 'pipeline', these two have simiar configure pages.
- Check the checkbox "Scan with Standalone scanner" if you want to do the scan in the standalone scanner mode. By default, it uses
Controller & Scanner
mode to do the scan. - Choose the controller endpoint you want to use if user select the controller mode, user can ignore it if select the standalone mode.

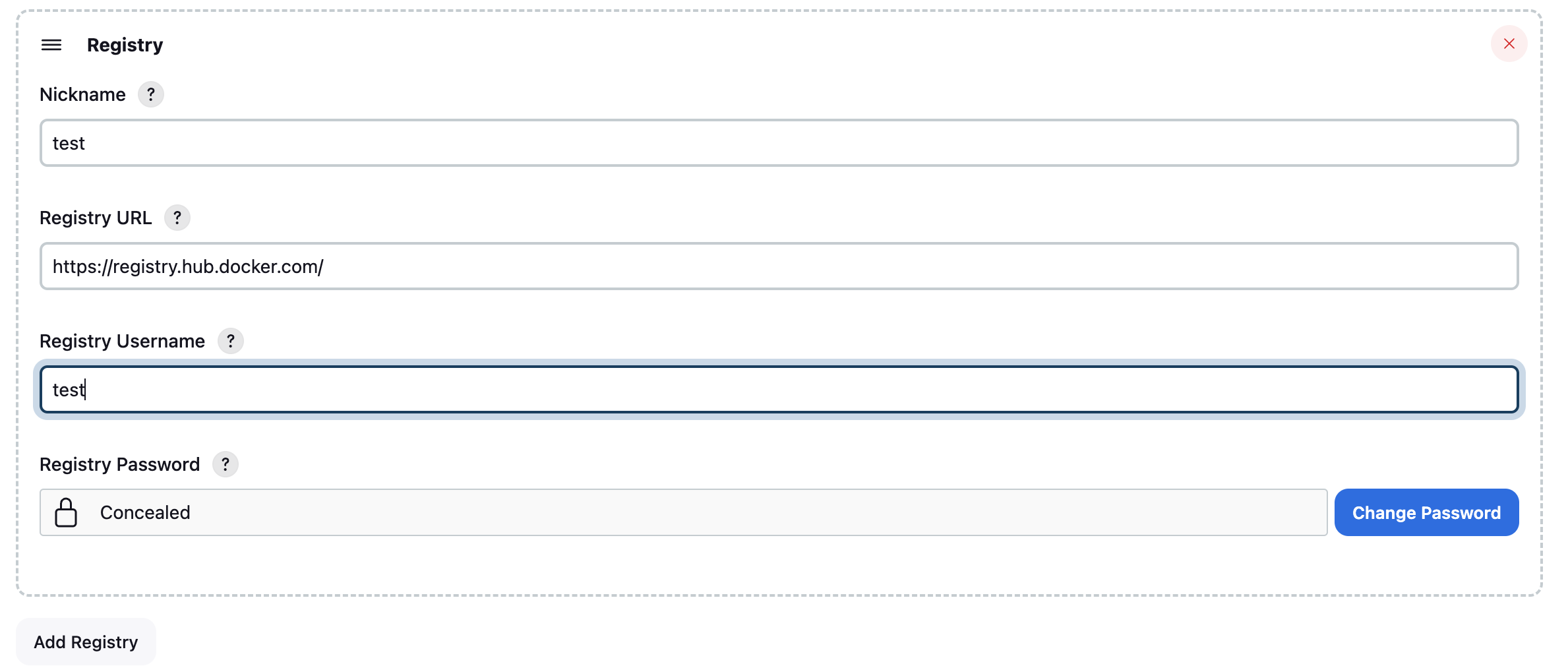

- Define the registry in the global config page and choose the registry name here. Enter the repository (image) name and tag name. You may choose Jenkins default environment variables for the repository or tag. e.g. $JOB_NAME, $BUILD_TAG, $BUILD_NUMBER.
- Enter the values for the number of high or medium, the vulnerability names that present to fail the build, the vulnerability names that are exempt from the scan. If you choose "Scan with Standalone", the scan timeout is 10 minutes by default.
- Finish the config, go back to the project page then click build. When the build finishes, a NeuVector report will be generated.
Here we provide an example pipeline from our testing machine.
pipeline {
agent {
// kubernetes represent the machine name.
kubernetes {
yaml '''
apiVersion: v1
kind: Pod
spec:
containers:
- name: docker
image: docker:dind
command: ["/bin/sh", "-c"]
args: ["dockerd & sleep infinity"]
securityContext:
privileged: true
runAsUser: 0
imagePullSecrets:
- name: my-dockerhub-secret
'''
}
}
stages {
stage('docker pull') {
steps {
// run the docker we declare above
container('docker') {
script {
neuvector nameOfVulnerabilityToExemptFour: '', nameOfVulnerabilityToExemptOne: '', nameOfVulnerabilityToExemptThree: '', nameOfVulnerabilityToExemptTwo: '', nameOfVulnerabilityToFailFour: '', nameOfVulnerabilityToFailOne: '', nameOfVulnerabilityToFailThree: '', nameOfVulnerabilityToFailTwo: '', numberOfHighSeverityToFail: '', numberOfMediumSeverityToFail: '', controllerEndpointUrlSelection: 'your controller Endpoint', registrySelection: 'your registry', repository: 'your repo', scanTimeout: 10, standaloneScanner: true, tag: 'some tag', registrySelection: 'your choice'
}
}
}
}
}
}
