Sysdig Secure is a container security platform that brings together Docker image scanning and run-time protection to identify vulnerabilities, block threats, enforce compliance, and audit activity across your microservices. The Sysdig Secure Jenkins plugin can be used in a Pipeline job, or added as a build step to a Freestyle job to automate the process of running an image analysis, evaluating custom policies against images, and performing security scans.

Requires a valid Sysdig Secure API token

Jenkins workers need to have access to the image storage, either to the local storage where the image was created or to the registry where it is stored.

The Sysdig Secure plugin is published as a Jenkins plugin and is available for installation on any Jenkins server using the Plugin Manager in the web UI through the Manage Jenkins > Manage Plugins view, available to administrators of a Jenkins environment.

See https://www.jenkins.io/doc/book/managing/plugins/

To configure the Sysdig Secure plugin:

1. Complete these steps after installing the plugin.

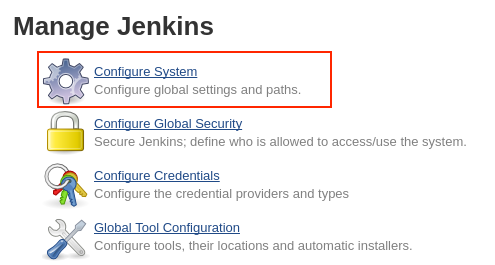

2. From the main Jenkins menu, select Manage Jenkins.

3. Click the Configure System link.



4. Scroll down to the Sysdig Secure Plugin section.

5. In the Sysdig Secure API Credentials drop-down, click Add button to create a new credential containing the Sysdig Secure API Token that you can find in Sysdig Secure -> Settings -> User Profile. You only need to fill the password field and keep the user blank. Oncre created, select the new credential in the Sysdig Secure API Credentials drop-down.

6. Enter the Sysdig Secure API endpoint in the Sysdig Secure Engine URL field. For On-Prem installations, this is the URL where your Secure API is exposed. For SaaS service:

   • Default region US East (North Virginia): https://secure.sysdig.com
   • US West (Oregon): https://us2.app.sysdig.com
   • European Union: https://eu1.app.sysdig.com

   Check SaaS Regions and IP Ranges for a complete list of regions

7. If you are connecting to an On-Prem instance using an invalid TLS certificate, then you need to either configure Jenkins to trust the certificate, or uncheck the Verify SSL checkbox.

8. Click Save.

In order to use the plugin you need to include the Sysdig Image Scanning build step either on your freestyle projects or your pipelines.

1. Using the Jenkins Docker plugin for this example, you could start by building the image and writing the image name to the sysdig_secure_images file



2. Open the Add build step drop-down menu, and select Sysdig Image Scanning. This creates a new build step labeled Sysdig Image Scanning Build Options.



3. Configure the available options, and click Save.



The following is a simplified example executing the Sysdig plugin as a stage inside a pipeline

stages {
    stage('Checkout') {
        steps {
            checkout scm
        }
    }
    stage('Build Image') {
        steps {
            sh "docker build -f Dockerfile -t ${params.DOCKER_REPOSITORY} ."
        }
    }
    stage('Scanning Image') {
        steps {
            sysdigImageScan engineCredentialsId: 'sysdig-secure-api-credentials', imageName: "${params.DOCKER_REPOSITORY}"
        }
    }
}

The table below describes the available configuration options.

The following is simple example of executing the Sysdig Secure plugin as a Jenkinsfile step:

sysdigImageScan imageName: 'ruby'

You can override any of the default parameters:

sysdigImageScan bailOnFail: false, bailOnPluginFail: false, engineCredentialsId: 'sysdig-secure-api-credentials', engineURL: 'https://secure.sysdig.com', engineVerify: false, imageName: 'ruby', policiesToApply: 'foo', scannerBinaryPath: '/bin/sysdig-cli-scanner'

You can use the inlineScanExtraParams option to enable the debug logging when executing the CLI, useful for troubleshooting:

sysdigImageScan imageName: ' ruby:latest', inlineScanExtraParams: '--console-log --loglevel=debug'

The plugin supports comparing two images to identify security changes between them. This is useful for tracking vulnerability improvements or regressions when updating base images or dependencies.

When you provide the imageToCompare parameter, the plugin will:

1. Scan the primary image (specified in imageName)
2. Scan the comparison image (specified in imageToCompare)
3. Generate a diff report showing:
   • Vulnerabilities Added: New vulnerabilities present in the primary image but not in the comparison image
   • Vulnerabilities Fixed: Vulnerabilities that were in the comparison image but are resolved in the primary image

Important: If the comparison image scan fails, the build will continue with just the primary image scan. A warning will be logged, but the build won't be aborted due to comparison failures.

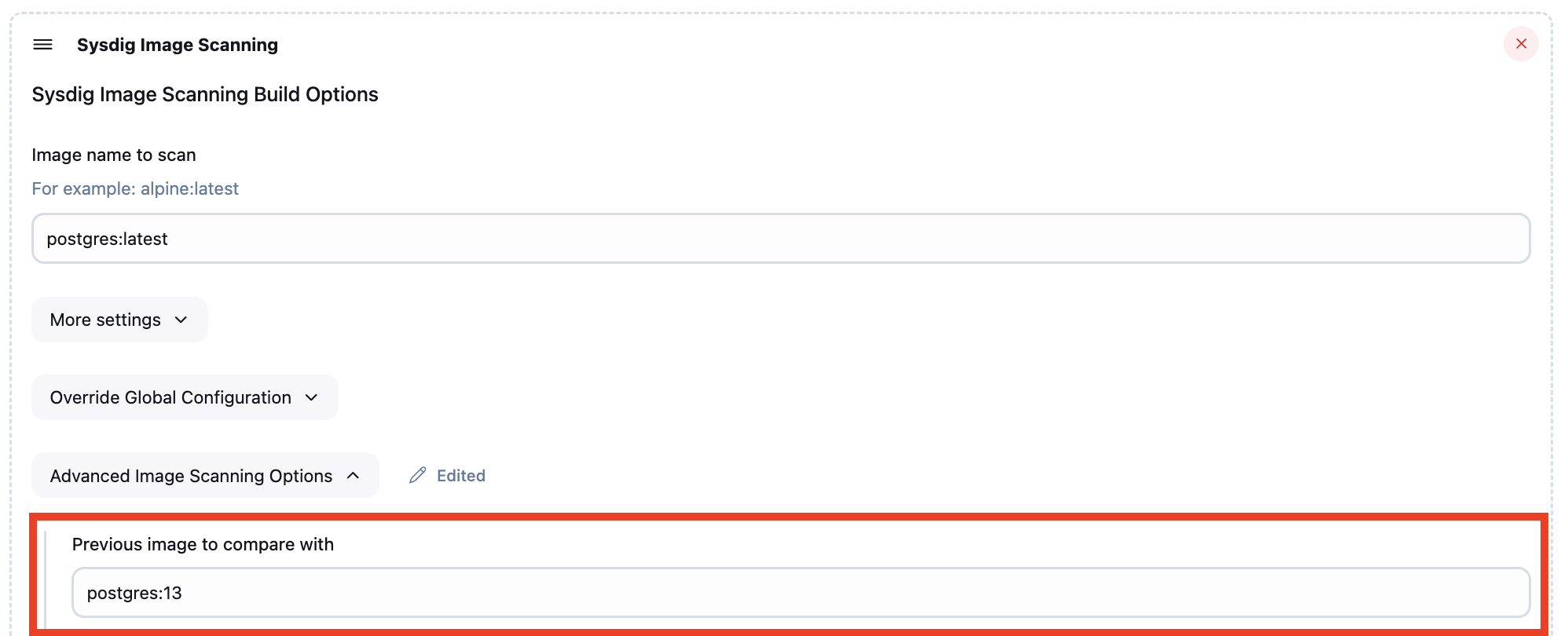

In the "Advanced Image Scanning Options" section of the Sysdig Image Scanning build step:

Enter the image name to compare against in the "Previous image to compare with" field.

Add the imageToCompare parameter to your sysdigImageScan step:

sysdigImageScan imageName: 'myapp:v2.0', imageToCompare: 'myapp:v1.9'

Comparing base image updates:

stage('Test New Base Image') {
    steps {
        sh "docker build -f Dockerfile.new -t myapp:alpine-3.19 ."
        sysdigImageScan imageName: 'myapp:alpine-3.19', imageToCompare: 'myapp:alpine-3.18'
    }
}

The CLI scanner will try to use locally available credentials, i.e. from the docker daemon configuration, when available. Additionally, it supports registry user and password credentials via REGISTRY_USER and REGISTRY_PASSWORD environmental variables as described in https://docs.sysdig.com/en/sysdig-secure/cli-scanner-vm-mode/#registry-credentials

You can use the Credentials Binding Plugin to map Jenkins credentials to the corresponding variables, for example:

withCredentials([usernamePassword(credentialsId: 'my-registry-credentials', passwordVariable: 'REGISTRY_PASSWORD', usernameVariable: 'REGISTRY_USER')]) {
    sysdigImageScan sysdigImageScan imageName: 'myregistry.com/repo/my-private-image:latest'
}

In case of dynamic credentials (i.e. a temporary ECR token), you can fetch the token and then bind to the corresponding variables like in the following example:

 stages {
        stage('Get ECR Registry Token') {
            steps {
                script {
                    REGISTRY_PASSWORD = sh(script: 'aws ecr get-login-password --region us-east-1', returnStdout: true).trim()
                }
            }
        }
        stage('Sysdig Vulnerability Scanning') {
            steps {
                script {
                    env.REGISTRY_USER = "AWS";
                    env.REGISTRY_PASSWORD = REGISTRY_PASSWORD;
                }
                sysdigImageScan imageName: "123456789012.dkr.ecr.us-east-1.amazonaws.com/myrepo/myprivate-image:latest"
            }
        }
    }

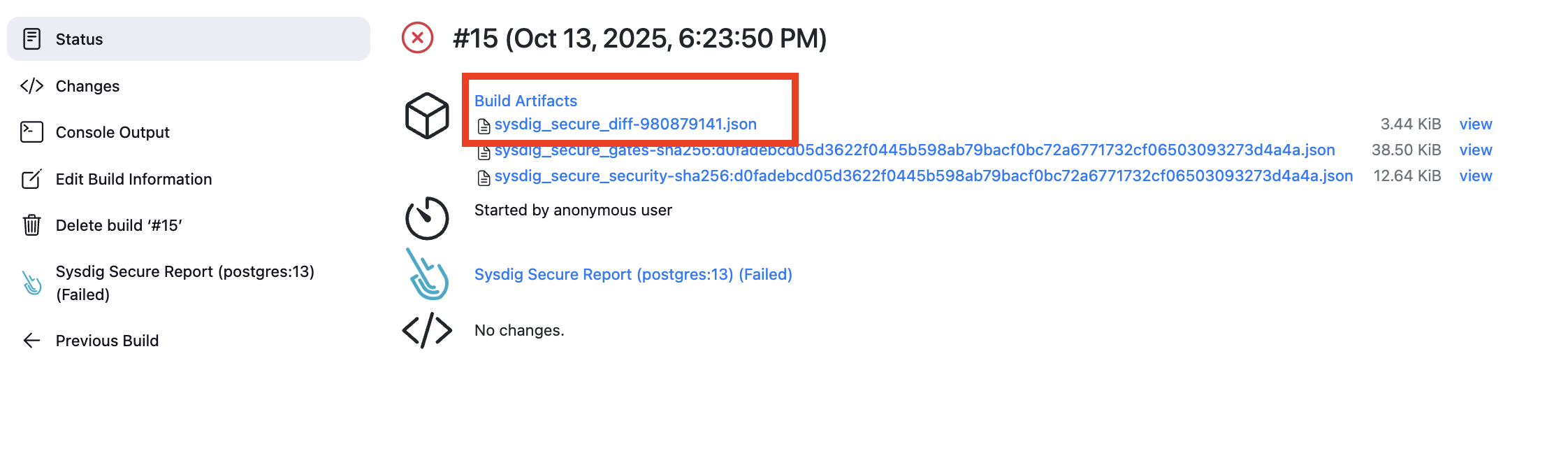

Once the scanning and evaluation is complete, you will have the following build artifacts and reports in the workspace

sysdig_secure_gates.json Scanning results for the Sysdig policy evaluation.

sysdig_secure_security.json Detected vulnerability data

sysdig_secure_raw-vulns_report-.json Raw vulnerability data

When using the image comparison feature (by specifying imageToCompare), an additional artifact is generated:

sysdig_secure_diff-<hash>.json Image comparison results showing vulnerabilities added and fixed between the two images

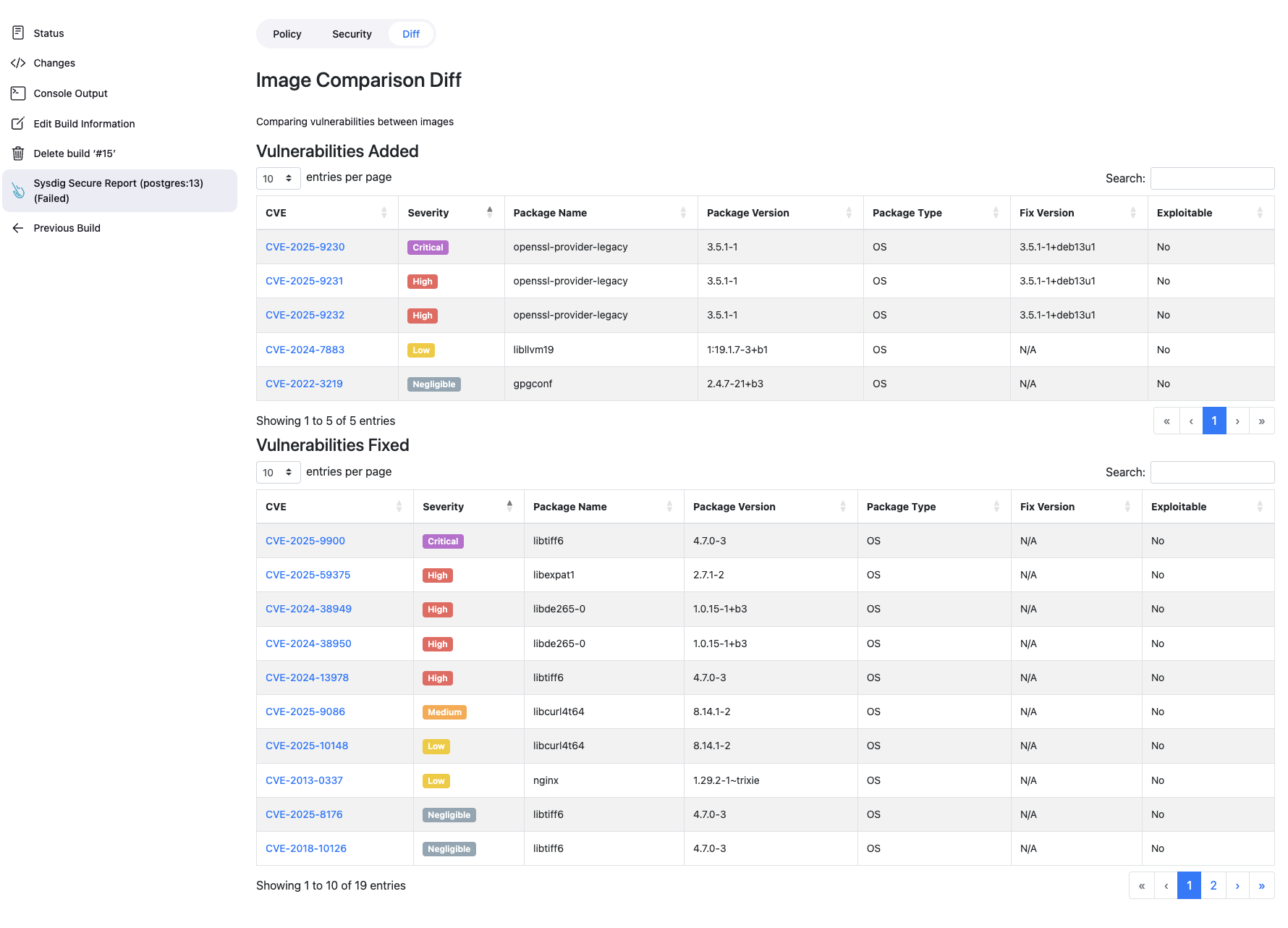

The diff report is accessible through the Sysdig Secure Report action and displays:

• Vulnerabilities Added: Security issues newly introduced in the scanned image
• Vulnerabilities Fixed: Security issues that were resolved compared to the previous image

This allows teams to:

• Track security improvements when updating dependencies or base images
• Identify new vulnerabilities introduced by code changes
• Make informed decisions about deploying new image versions

Additionally, the plugin offers you an HTML formatted table output that you can directly display from the interface (Sysdig Secure Report (FAIL) in the image above)

We now use Nix to ensure consistent development environments across different developers.

You can run:

nix develop # opens a new shell with all the dependencies in the path
mvn package

This provides a preconfigured environment with the required JDK and Maven version.

Alternatively, if you prefer not to use Nix, you can use your own setup, just make sure you have Java 17 or higher and Maven 3.9.9 installed.

You can also build the plugin using Docker:

docker run -it --rm -v "$(pwd)":/usr/src/app -w /usr/src/app maven:3.9.9-eclipse-temurin-17 mvn package

Once built, install the sysdig-secure.hpi plugin via the Jenkins UI or by copying it into $JENKINS_HOME/plugins.
