Interactive CI

A notification bell and a rich human‑in‑the‑loop (HITL) modal for Jenkins pipelines that pause for a human decision — plus a language‑agnostic REST API so any external agent (a bot, a script, an AI copilot) can answer on a human's behalf.

• Why this plugin exists
• input vs interactive-ci
• Features
• How it works
• Quick start
• The askInteractive step
• The interactiveView step
• The interactiveOutput step
• Human-in-the-loop scenarios
• Drive it from an AI agent (Python)
• REST API
• Bridging existing input steps

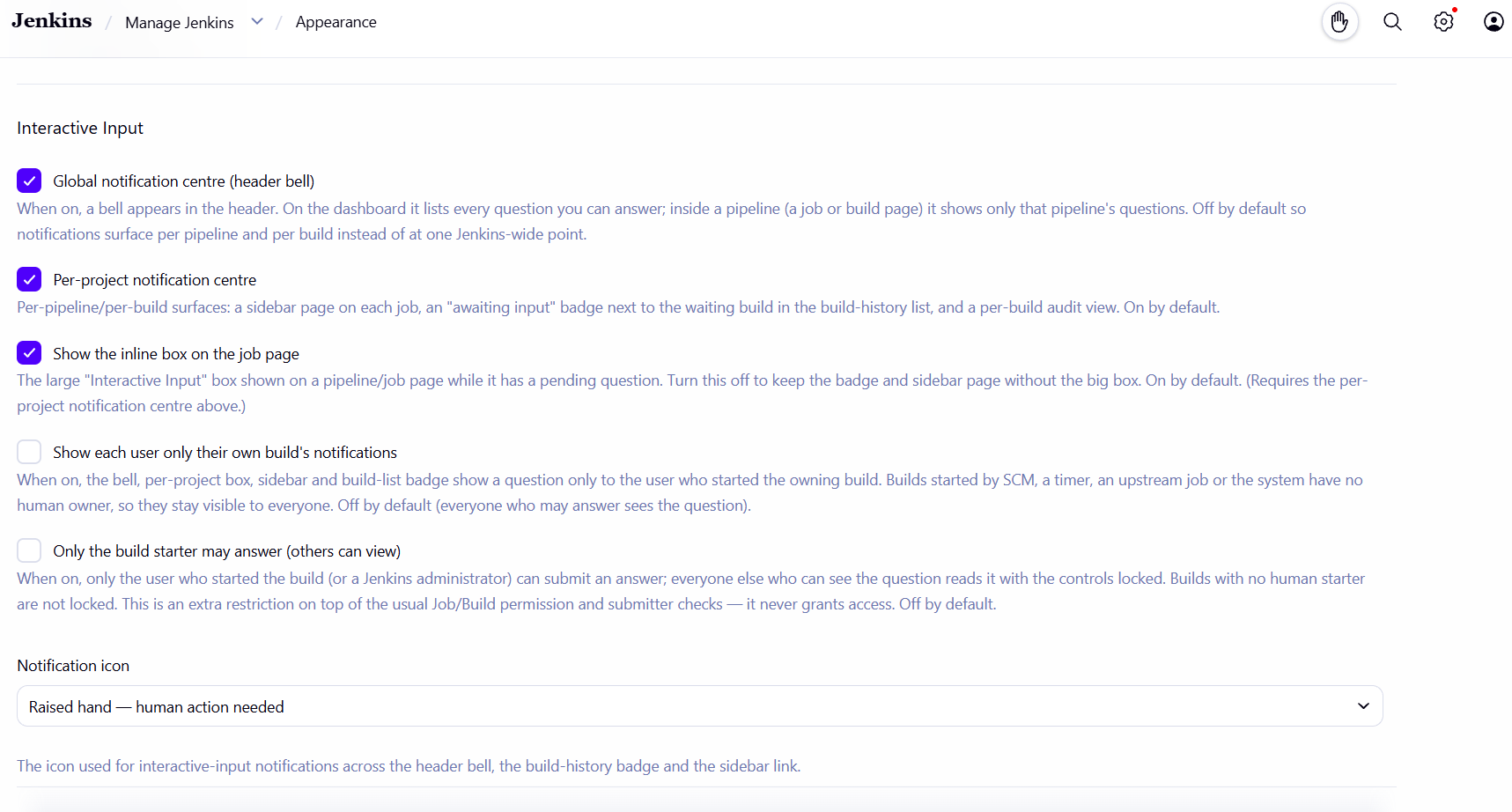

• Settings and screens
• Configuration (UI + JCasC)
• Security model
• Language applicability & restrictions
• Compatibility matrix
• Build from source
• Project docs
• License

Jenkins has shipped a pipeline input step for years. It works, but it has three long‑standing gaps for teams doing serious human‑in‑the‑loop automation:

1. There is no in‑UI signal that a build is waiting for you. A paused build sits silently until someone happens to open the right build page. Approvers miss deploys; pipelines idle for hours against their will.
2. The approval surface is minimal. The built‑in prompt is a message, an OK button, and optional form parameters. There is no place for rich context (release notes, a diff, a risk summary), no notion of why each choice exists, and no first‑class way for an external agent to answer programmatically with a clean, versioned contract.
3. There is nowhere to review a generated artifact or see a build's results in context. When a pipeline — or an AI agent — produces a file (a design doc, a Terraform plan, release notes, a PR), there is no in‑Jenkins way to review it line by line, leave comments, and feed those comments back for regeneration; and per‑build metrics (cost, resource usage, carbon footprint) live only in the log, with no cards or trend across builds.

interactive-ci closes all three gaps without changing anything about how your existing pipelines behave. It adds a notification bell, a rich modal, a durable askInteractive step, a Confluence‑style file‑review surface (interactiveView) with a comment‑and‑regenerate loop, a per‑build statistics surface (interactiveOutput), and a REST API — all opt‑in, all governed by the same permission model Jenkins already enforces on input.

Both pause a pipeline and wait for a human. Here is what changes:

TL;DR — interactive-ci is a superset UX and an integration surface on top of the same durable, permission‑checked foundation as input. You can adopt it incrementally: flip on the bridge to light up existing inputs, or write new askInteractive steps when you want the richer surface.

• 📍 Per‑project notification centre — notifications surface where the work is, not at one Jenkins‑wide point: a box + sidebar page on each pipeline/job listing its pending questions, an "awaiting input" badge next to the relevant build in the build‑history list, and a per‑build audit view. On by default (perProjectCentre, under Appearance). The inline job‑page box has its own on/off switch (jobPageBox, on by default) so you can keep the badge + sidebar without the big box.
• 👁️ Attention pulse — the build‑history "awaiting input" badge and the job‑page box title blink slowly in red to catch the eye, with a prefers-reduced-motion fallback that disables the animation for motion‑sensitive users.
• 🎛️ Choosable notification icon — pick the icon used across the bell, badge and sidebar from seven meaning‑matched Ionicons (megaphone (default), speech bubble, raised hand, pull‑request, hourglass, alert, classic bell) under Appearance.
• 👤 Attribution — every surface shows who started the build ("started by <user>", or scm/timer/upstream/system), so reviewers can tell whose job is waiting.
• 🔗 Console audit link — like the built‑in input, the build log gets an anchored link at the point of invocation; clicking it opens the audit view showing what was displayed and what was chosen. The flow node is also marked Paused so stage/flow views reflect the wait, and the outcome (answered/aborted/expired, by whom) is logged.
• 🔔 Global notification bell — an optional header badge with the count of questions you can answer, polled at a configurable cadence (no WebSocket/SSE, so it works through every corporate proxy). Context‑scoped: on the dashboard it lists every answerable question; inside a pipeline (a job/build page) it narrows to that pipeline's questions. Off by default (notificationCentre, under Appearance); anchored into the header controls (with a bottom‑right floating fallback) so it never overlaps the settings gear.
• 🪟 Rich modal — Markdown context panel (expanded by default), radio choices each with an optional rationale, optional free‑text with a live (server‑sanitised) preview, full keyboard/focus‑trap accessibility. Shared by the bell and every per‑project surface.

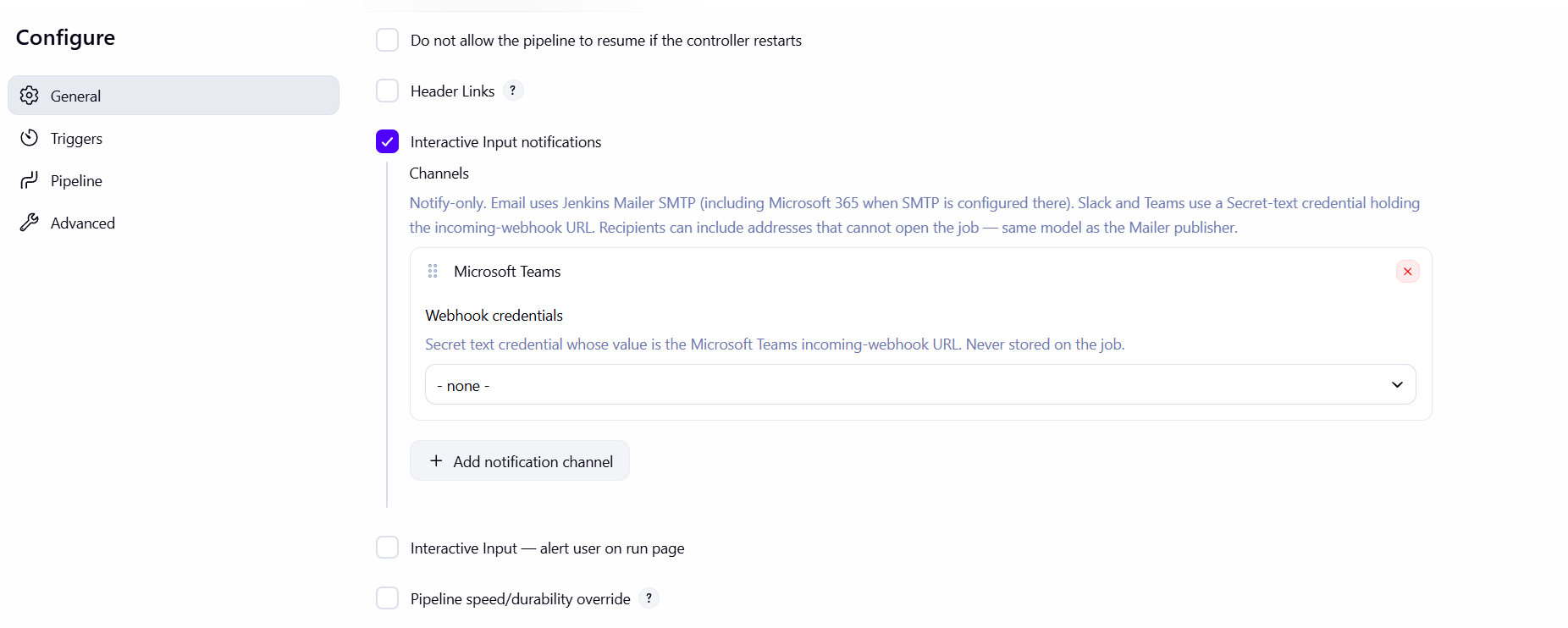

• 📨 Per‑pipeline outbound notifications — Configure → Interactive Input notifications adds Email, Microsoft Teams, or Slack channels. Notify-only (a Jenkins URL, never answering from Slack). Email uses Jenkins Mailer SMTP (including Microsoft 365). Webhook URLs are Secret-text credentials.
• 🧩 askInteractive step — a durable pipeline step that returns the chosen id (or free text), throws on abort, and times out on SLA.
• 📝 interactiveView step — publish a generated file — or a whole folder / glob of dynamically‑created files (includes/dir, one review per match) — for a Confluence‑style review inside Jenkins: per‑element inline comments (click the exact heading, paragraph, list item or table row — on the source or the rendered Markdown — no line‑number dropdown) plus general comments, threaded replies (an automation can answer under a reviewer's comment with a configurable display name — default AI response — while the audit author stays the real identity), an editable review copy with version history (the original file is never touched; edits are allowed while a review is open and while changes are requested), and approve / request changes / reject / acknowledge (or a read‑only mode: 'info' viewer). Non‑blocking by default, or wait: true to pause the pipeline on the decision — which returns the reviewer's inline comments so a generator (e.g. an AI agent) can regenerate on Request changes. The per‑job page groups reviews by report/folder with Needs‑approval vs Informational sections and filters; content is snapshotted durably; malformed GFM tables are repaired before rendering; code/HTML is shown as escaped, syntax‑highlighted source (never executed) via prism-api.
• 📊 interactiveOutput step — publish per‑build statistics (cost, carbon footprint, resource usage, …) as KPI cards + a filterable/sortable table on the build page and a per‑job chart across builds via echarts-api, with a selectable chartType (line / bar / pie / time‑series) per report — time‑series plots date‑labelled metrics with a Time / Day / Month / Year granularity toggle.
• 🌐 Versioned REST API — GET/POST JSON under /interactive-input/api/v1/, permission‑checked, CSRF‑protected, with a stable envelope.
• 🌉 inputStepBridge — opt‑in reconciliation that mirrors existing native input steps into the bell/modal/API, forwarding answers back to the native step. Zero pipeline changes.
• ⏱️ SLA + retention — expire overdue questions; compact terminal ones after a retention window.
• ⚙️ JCasC‑native — configure everything as code; every capability is a feature flag.
• 🔒 Secure by construction — server‑side Markdown escaping, permission checks at every endpoint, no existence leaks, admin‑gated global list.

flowchart LR
  subgraph Pipeline
    A["askInteractive(...)"] -->|register| S[(QuestionStore\nXmlFile-persisted)]
    B["native input(...)"] -.->|opt-in bridge| S
    V["interactiveView(...)"] -->|publish review| VS[(ViewStore\nXmlFile-persisted)]
    O["interactiveOutput(...)"] -->|persist stats| BA["Per-build output action\n(build.xml)"]
  end
  S --> BELL["🔔 Notification bell\n(polls REST)"]
  VS --> BELL
  S --> REST["/interactive-input/api/v1/**"]
  VS --> REST
  BELL --> MODAL["Rich modal / review editor"]
  MODAL -->|"answer/abort · comment/decision"| REST
  AGENT["External agent\n(any language)"] -->|"answer, or regenerate on Request changes"| REST
  REST -->|resolve| S
  REST -->|comment/decide| VS
  S -->|resume/throw/timeout| A
  S -.->|forward proceed/abort| B
  VS -->|"wait:true → inline comments + decision"| V
  BA --> CHARTS["Per-job trend charts\n+ KPI cards"]
  TICK["SLA ticker\n(AsyncPeriodicWork)"] --> S

A paused askInteractive step registers a Question in a durable, permission‑aware QuestionStore. The bell polls the REST API for questions the current user may answer; the modal (or any external agent) answers via POST …/answer; the store resolves the question and the pipeline resumes, throws (abort), or times out (SLA). Question metadata survives a controller restart via XStream; transient resolvers are re‑attached on step resume.

interactiveView publishes a durable ReviewDocument — an editable copy of the file (or one per file in a folder/glob) — to the ViewStore; reviewers add inline and general comments and a decision (approve / request changes / reject / acknowledge) through the same permission‑checked REST layer, and with wait: true the step returns the decision and the reviewer's inline comments so a generator (e.g. an AI agent) can regenerate on Request changes. interactiveOutput is non‑blocking: it persists per‑build statistics into the build itself and renders them as KPI cards + a filterable table on the build page and per‑job trend charts across builds.

What a person actually experiences, end to end:

1. Pause. The build reaches askInteractive(...) (or a bridged native input) and suspends — without holding an executor. The stage shows Paused in the Pipeline Graph View, and the build Console Output gets an anchored "Open interactive input" link.
2. Notice. Everyone allowed to answer sees the pending question as soon as it appears — on the header bell, the job‑page box, the build‑history badge and the sidebar — kept fresh by polling, so no page reload is needed.
3. Approve / answer. A human opens the rich modal from any of those surfaces (or the console link) and Approves, Denies, picks a choice, or types an answer; an authorised agent can do the same via POST …/answer. Permissions are re‑checked server‑side on every answer.
4. Resume. On answer the build continues from where it paused with the returned value; Deny aborts the build (exactly like input); an unanswered question auto‑expires on its SLA. Either way the outcome (who answered and what they chose) is written to the console and the per‑build audit page.

A restart mid‑pause is safe: the question is persisted, and the build re‑attaches to it (and resumes immediately if it was answered while the controller was down).

interactiveView follows the same shape for files instead of a yes/no question:

1. Publish. The pipeline — or an AI agent — calls interactiveView(file: 'report.md', …), or points it at a folder / glob of dynamically generated files (one review per match). Each file becomes a durable, editable review copy; the original on disk is never touched.
2. Notice. The review surfaces on the header bell, the per‑job Interactive View page (grouped by report/folder, with Needs‑approval vs Informational sections and filters), and the build‑history badge — just like a pending question.
3. Review. A reviewer reads the file (rendered Markdown, a generated HTML report rendered in an isolated frame, or escaped syntax‑highlighted source — never executed in the Jenkins page), leaves inline comments (click the exact heading / paragraph / list item / table row on either view) and general comments, and picks Approve, Request changes, Reject, or Acknowledge. mode: 'info' makes it a read‑only viewer.
4. Resume / regenerate. With wait: true the step blocks on the decision and returns it together with the reviewer's inline comments, so a generator can regenerate the file from those comments. The generator can then either publish a fresh review or edit the existing review copy in place — permitted even after Request changes — recording a new version (the editor keeps a version history) and posting a threaded reply under each reviewer comment (shown with a configurable name such as AI response). Without wait the publish is non‑blocking.

interactiveOutput needs no pause at all — it is a non‑blocking post/summary step: it records the build's statistics and renders them as KPI cards + a filterable table on the build page and a trend chart across builds on the job page.

pipeline {
  agent any
  stages {
    stage('Approve deploy') {
      steps {
        script {
          def answer = askInteractive(
            prompt: 'Deploy build to production?',
            choices: [
              [id: 'approve', label: 'Approve', why: 'Release notes look good; all checks green.'],
              [id: 'reject',  label: 'Reject',  why: 'Needs another round of testing.']
            ],
            allowFreeText: true,
            contextMarkdown: '''## Release 4.2.0
- Fixes CVE‑2026‑1234
- Adds retry to the payment worker''',
            slaMinutes: 30
          )
          echo "Human chose: ${answer}"
        }
      }
    }
  }
}

When this build reaches the step it pauses, the bell lights up for everyone allowed to answer, and the pipeline resumes the moment a human (or an authorised agent) responds.

Return value

• A choice was picked → the choice id (String).
• Free text was submitted → [text: '…', choice: null].
• Abort / Deny → throws AbortException (fails the stage unless you catch it).
• SLA expiry → throws a timeout, so a paused build cannot idle forever.

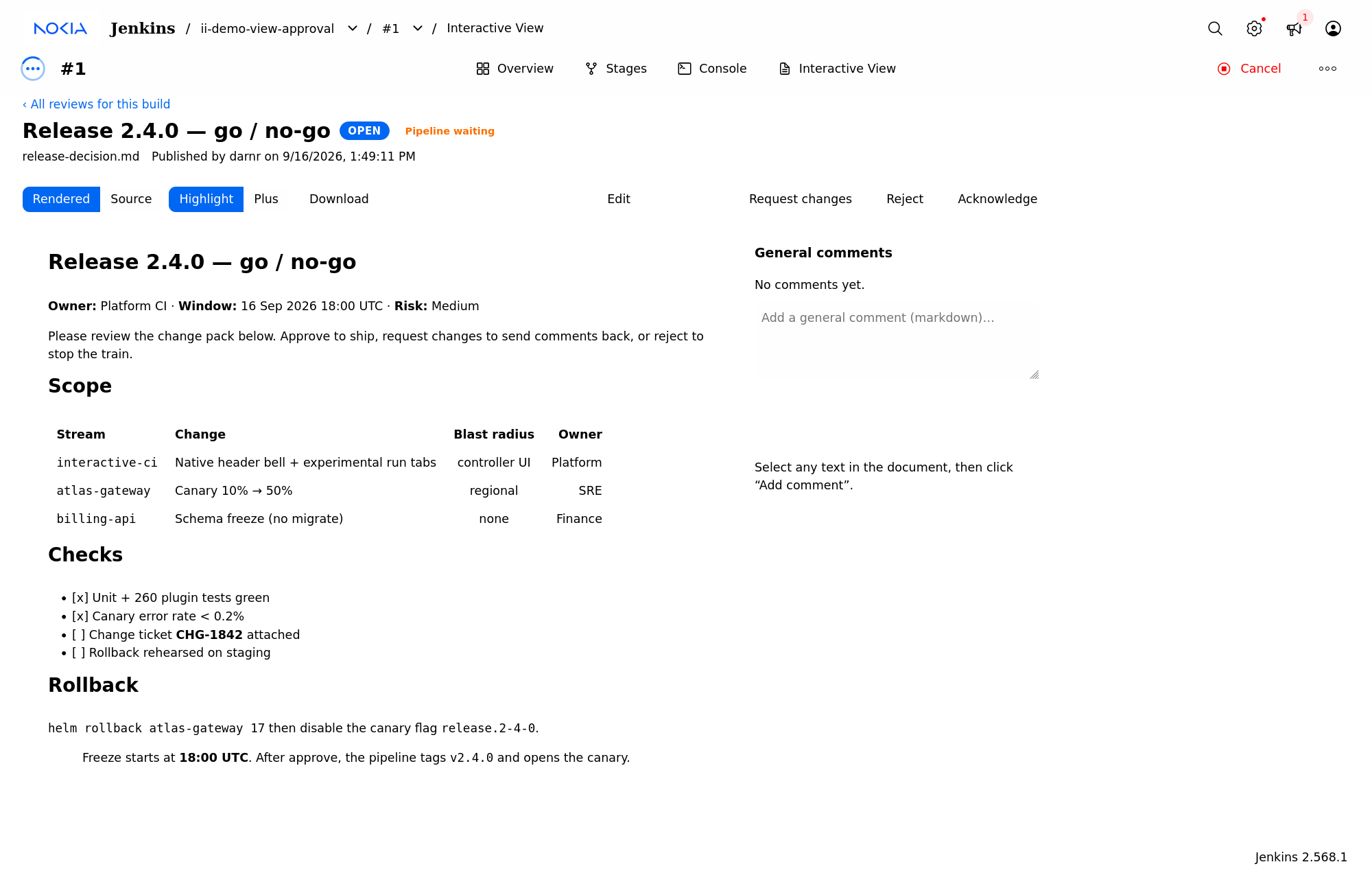

Publish a generated file for review inside Jenkins — like commenting on a Confluence page. The file's content is snapshotted into a durable store at step time (so the review survives workspace cleanup); Markdown is rendered safely (and malformed GFM tables — e.g. a delimiter row with fewer cells than the header — are repaired before rendering); an HTML file can be read either way — a Rendered view of the report itself or its Source — and any programming language is shown as escaped, syntax‑highlighted source (never executed). Runs inside a node { } (it needs a workspace to read the file).

An HTML document is rendered in an isolated frame (sandbox="allow-scripts" with no allow-same-origin, served under Content-Security-Policy: sandbox), so a self‑contained report such as a Robot Framework log.html — whose content is produced entirely by its own JavaScript — displays properly while its scripts sit in a unique opaque origin that cannot read the Jenkins page, your session cookie or a CSRF crumb. Because that frame is isolated, the Rendered view is read‑only: inline line comments live on the Source view, and the decision buttons are outside the frame, so both keep working. Operators who would rather not render HTML at all can turn the Render HTML review documents feature off under Manage Jenkins → System, which leaves HTML source‑only as before.

node {
  // …generate report.md (or a .html / .java / .py / .txt …)…
  interactiveView(file: 'report.md', reportName: 'Release notes')          // non‑blocking: publish and continue

  // A whole folder of dynamically-generated files (exact names unknown at author time):
  // one review per match, grouped under the same reportName.
  interactiveView(includes: 'reports/**/*.md', reportName: 'Nightly reports', mode: 'info')

  // Or pause the pipeline until a reviewer decides (single file only):
  def decision = interactiveView(file: 'plan.md', reportName: 'Deploy plan',
                                 editable: true, wait: true, slaMinutes: 120)
  echo "Review ${decision.status} by ${decision.decidedBy} (v${decision.version})"
  if (decision.status == 'REJECTED') { error 'Deploy plan rejected' }
}

Provide exactly one file source: file, includes, or dir.

Where it shows — an "Interactive View" link in the run's left sidebar opens the two‑pane editor (rendered document / highlighted source on the left; comment threads on the right, with edit‑copy history and Approve / Request changes / Reject / Acknowledge — the decision toolbar is hidden for mode: 'info' items). Add an inline comment by hovering the element you want to annotate — a source line, or a heading / paragraph / list item / table row in the rendered Markdown — and clicking the + that appears in the gutter; the comment is anchored to that element's exact source line (there is no line‑number dropdown). An automation can post a threaded reply under a reviewer's comment via the REST API, shown with a configurable display name (default AI response) while the recorded audit author stays the real Jenkins/token identity. The sidebar link carries a live count badge of open reviews (job‑ and build‑scoped, updated without a page reload) and stays visible after the build completes, so decided reviews' comments and version history remain reachable. The build console gets an anchored deep‑link, the build‑history row shows a small badge while a review is open, and the job gets a list page grouped by report/folder with Needs‑approval vs Informational sections, a Notified badge, and All / Notified / Needs‑approval filter chips + search. All of this works in both the classic and experimental job/build layouts (light and dark): under the experimental layout the per‑build surfaces render as native overview cards (not inside core's "Legacy" card) — the build page shows a compact Interactive View card listing that build's reviews (each review's title, its file name, status, Notified flag, and comment count) in a scrollable panel (capped at ~10 rows) with a View all reviews link pinned below, mirroring the Interactive Output card; the report‑name heading is dropped when it would merely repeat a lone file's title. Both build‑page cards can be turned off under Appearance (viewBuildCard / outputBuildCard), and the pages stay reachable via the native "more actions" overflow menu. The review surfaces honour the same System switches as questions — userScopedNotifications (see only your own builds' reviews) and lockToBuildStarter (non‑starters may view but not contribute) — see Configuration (UI + JCasC).

Return value — non‑blocking returns the review id (String). With wait: true it returns a map {id, status, decidedBy, version, content, comments} where status is APPROVED / REJECTED / ACKNOWLEDGED / CHANGES_REQUESTED (these do not abort the run — branch on them) and comments is a list of {id, line, body, author, createdTs, resolved} (line is the 1‑based source line for an inline comment, or -1 for a general note). An elapsed SLA throws a timeout.

Regenerate loop — Request changes (status == 'CHANGES_REQUESTED') hands the inline comments back so a generator can course‑correct and re‑publish, until the reviewer approves:

node {
  while (true) {
    generateReport('report.md')   // your generator / AI agent writes the file
    def r = interactiveView(file: 'report.md', reportName: 'AI report', wait: true, commentable: true)
    if (r.status != 'CHANGES_REQUESTED') { break }         // APPROVED / REJECTED / ACKNOWLEDGED -> stop
    writeFile file: 'comments.json', text: groovy.json.JsonOutput.toJson(r.comments)
    // …feed report.md + comments.json to the generator, then loop to regenerate…
  }
}

For an out‑of‑band loop — where an external agent (not the pipeline) course‑corrects a review after Request changes — the agent edits the durable copy in place (POST …/views/{id}/edit with a version note) and posts a threaded reply under each reviewer comment (POST …/views/{id}/comments with parentId + automated:true). Editing a CHANGES_REQUESTED review is allowed and does not re‑open it — see the REST API section for the /views/{id}/edit and /views/{id}/comments shapes.

Publish per‑build statistics (cost, carbon footprint, resource usage, …) as KPI cards + a table on the build page, and feed a per‑job trend chart across builds. Synchronous and non‑blocking; typically used in a post/summary phase. No workspace required.

interactiveOutput(reportName: 'Cost report', chartType: 'bar', metrics: [
  [label: 'Total cost',  value: '12.40', unit: 'USD',    key: 'cost'],
  [label: 'CPU minutes', value: '318',   unit: 'min',    key: 'cpu'],
  [label: 'Carbon',      value: '0.42',  unit: 'kgCO2e', key: 'carbon'],
  [label: 'Status',      value: 'green']                       // non‑numeric: shown, but not trended
])

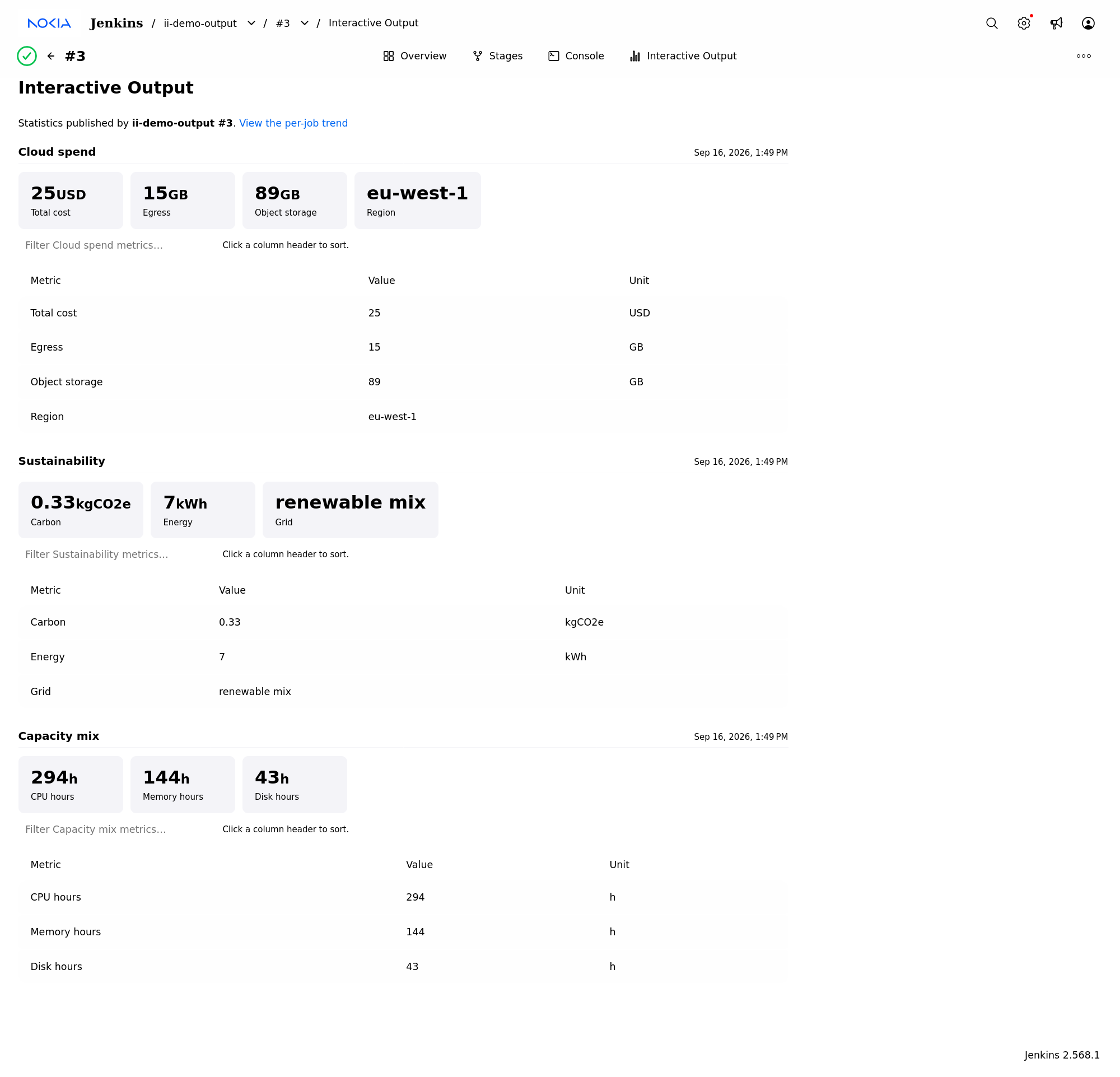

Where it shows — the build's main page shows KPI cards + a filterable, sortable table (search box + click‑to‑sort headers; a column of dates sorts chronologically and gains a Group by date — Day / Month / Year — control), plus an "Interactive Output" sidebar page with the full detail; the job gets an "Interactive Output" page with a theme‑aware chart per report (line/bar/pie/timeseries, chosen by chartType). A metric feeds line/bar trends when its value is numeric (a leading currency symbol and thousands separators are tolerated, e.g. $1,234.5) and it carries a stable key that identifies the series across builds (the key defaults to the label); pie plots the latest build's numeric metrics; timeseries plots the latest build's metrics against their date labels, re‑bucketed live to the chosen Time / Day / Month / Year granularity. Data is stored in the build itself (build.xml), so no extra store is needed. Both pages render correctly in the classic and experimental layouts (light and dark) — under the experimental layout the per‑build KPIs render as a native overview card rather than inside core's "Legacy" card.

Every pause shows the same rich modal. What changes is the shape of the question, and that is set by two askInteractive inputs: choices (zero or more options to pick from) and allowFreeText (whether a typed answer is allowed). If one build asks several questions at once, they become the numbered "series" slider.

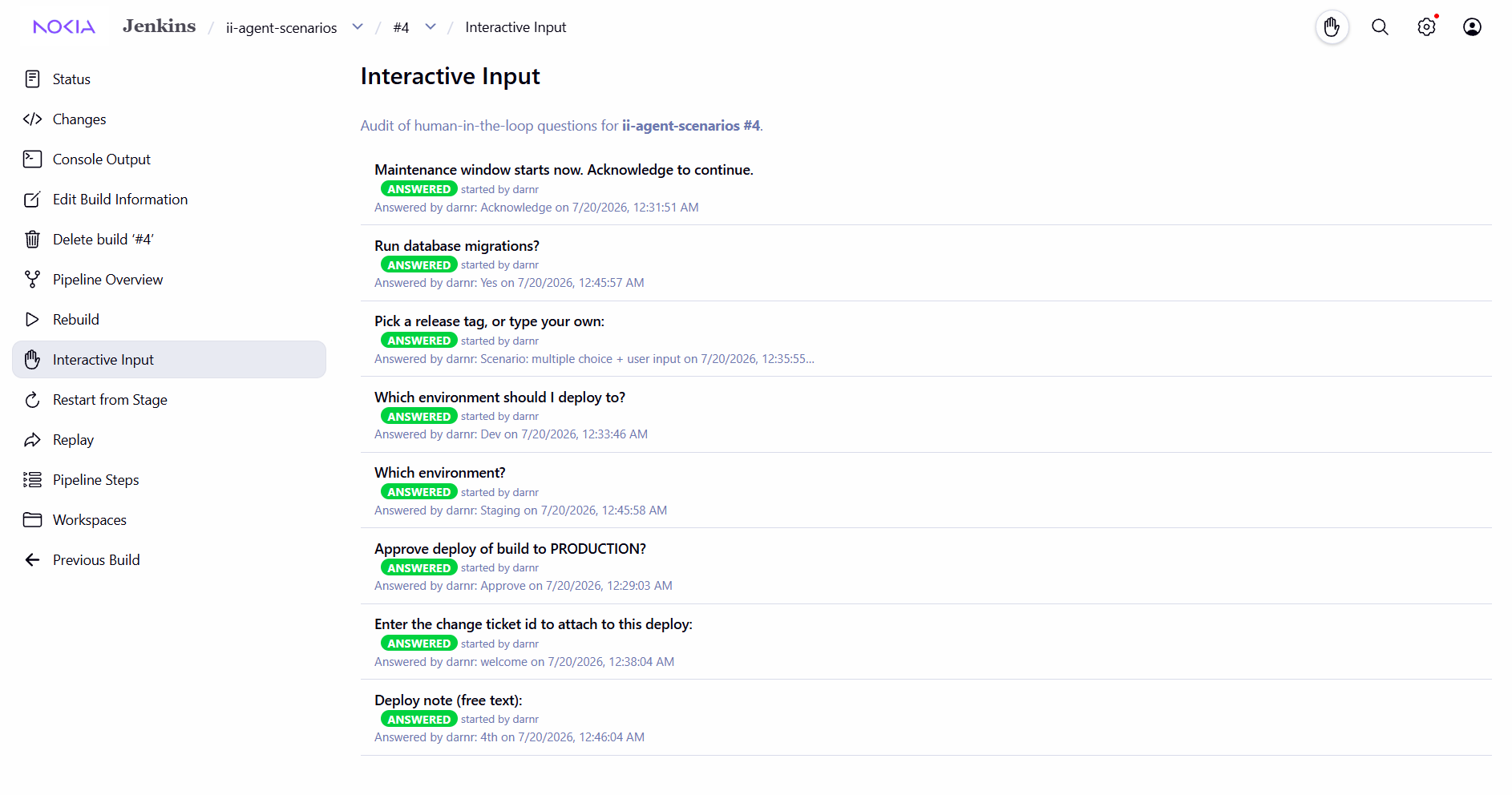

Each modal shows the question, a <job> #<build> · started by <user> line, and three buttons: Answer (send the picked option or typed text), Deny (reject — the pipeline's askInteractive throws AbortException, so the step fails), and Cancel (just close the dialog).

An autonomous agent (a bot, a script, or an LLM copilot) pauses mid-task and asks a human through the plugin. The six shapes below cover the human loops agents hit in practice. The screenshots are live captures from a demo pipeline where a Cursor-SDK agent drives each shape.

1. Approve / Deny — a two-button gate. The agent proposes an action; the human approves or rejects it.

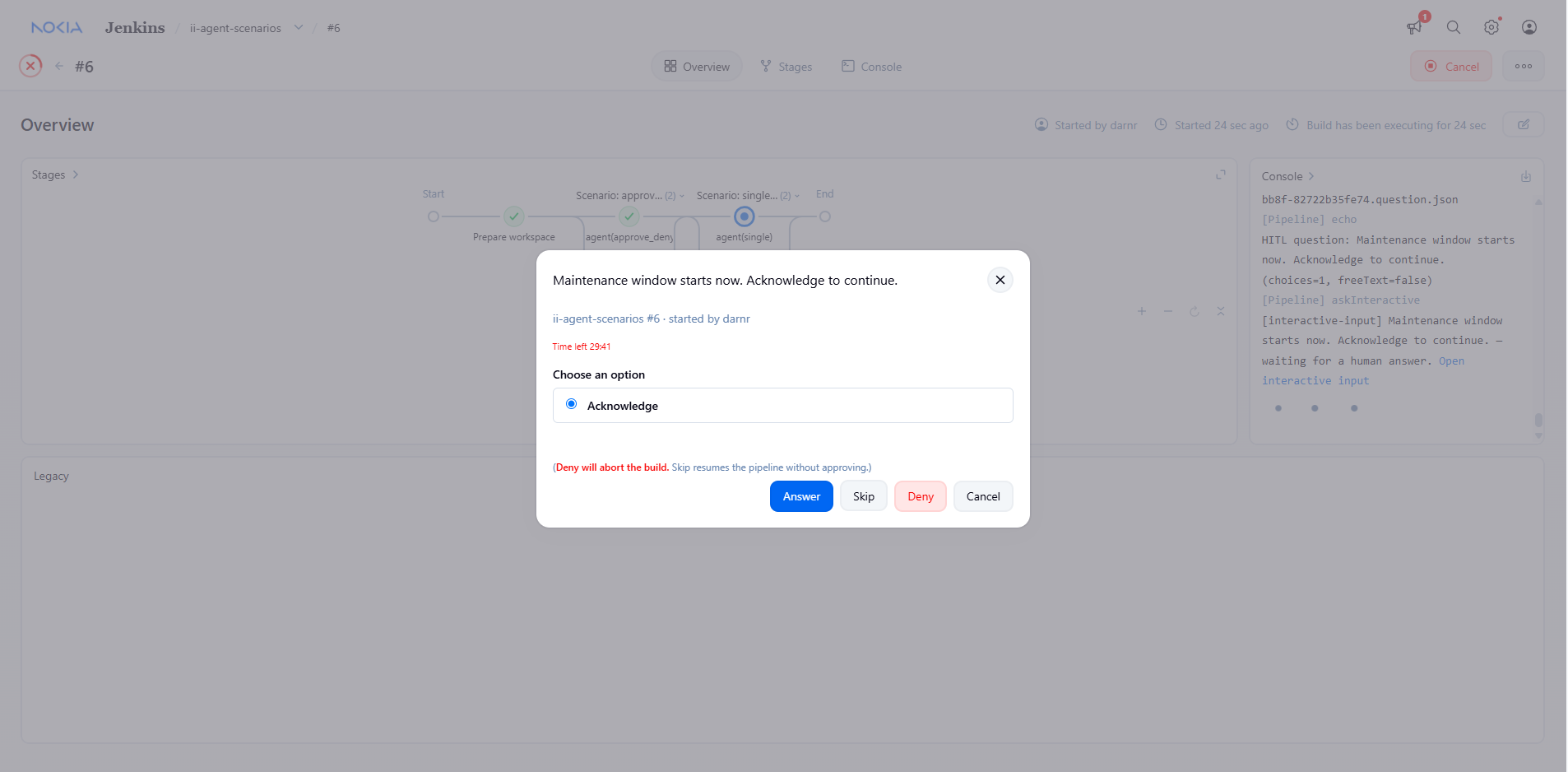

2. Single option — a one-button acknowledgement (e.g. "Maintenance window starts now. Acknowledge to continue."). Used when the agent needs a human to confirm they have seen something before it proceeds.

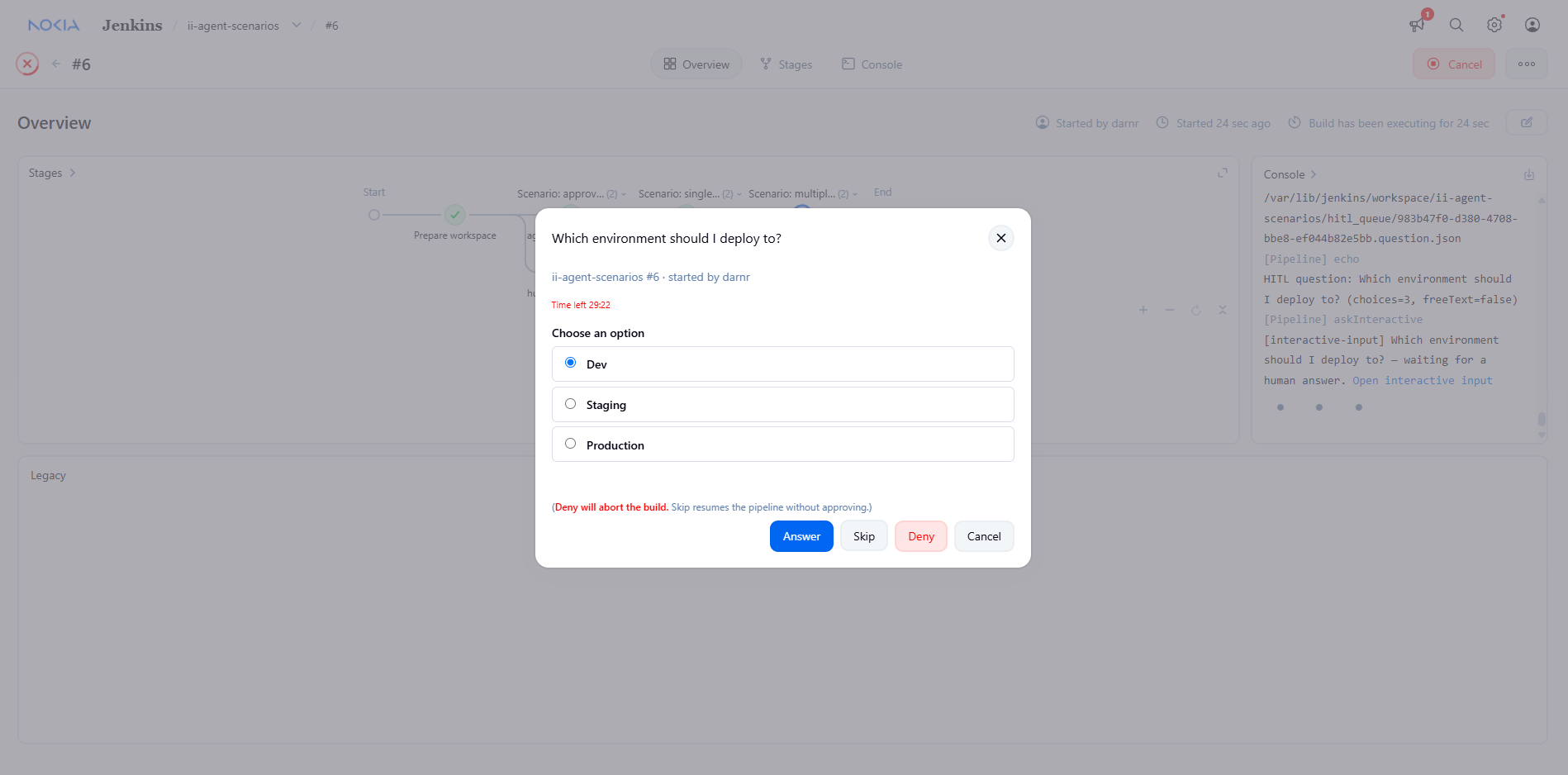

3. Multiple choice — pick exactly one of N options, no free text. Here the agent asks which environment to deploy to.

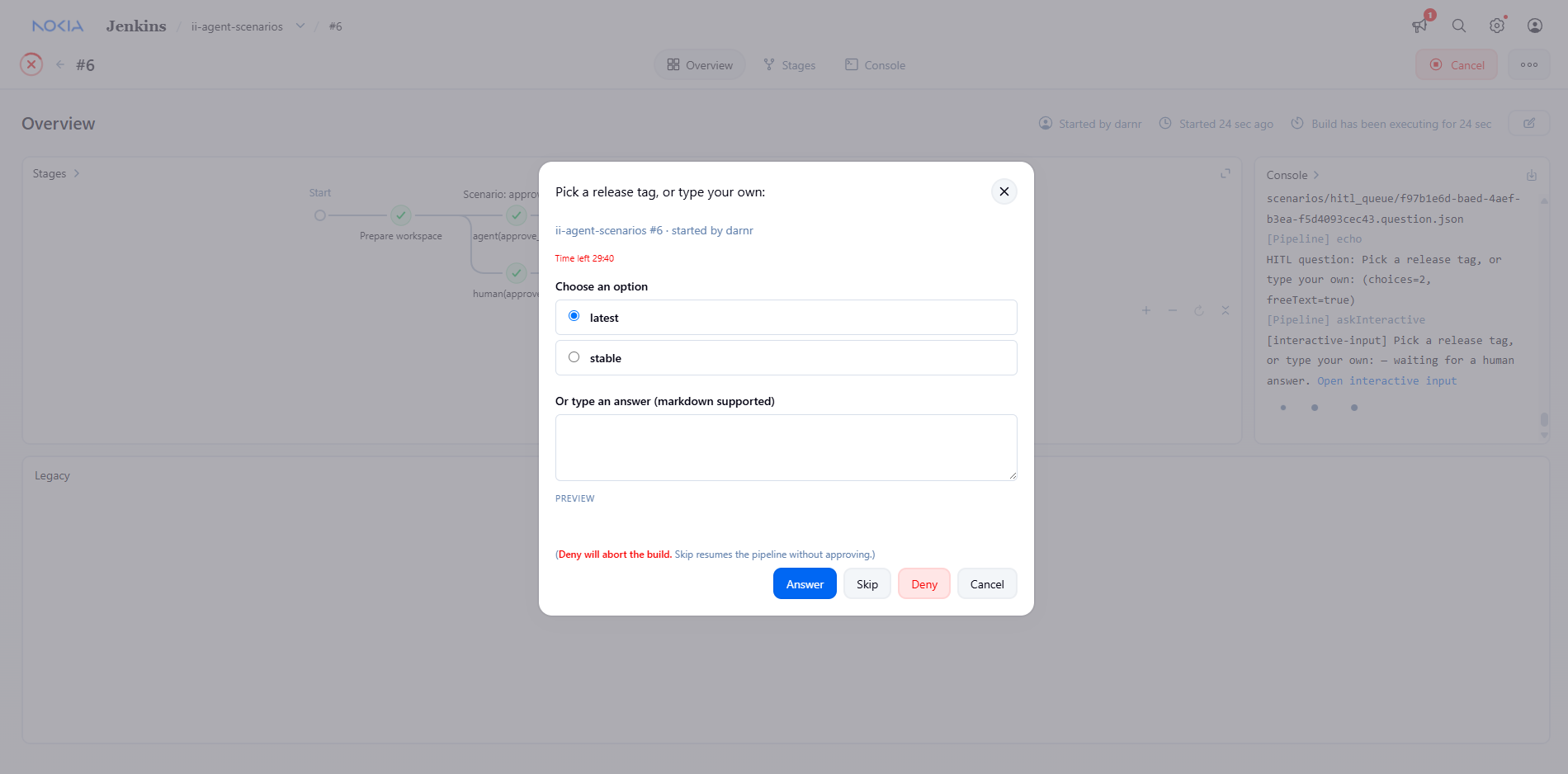

4. Multiple choice + user input — pick a listed option or type your own. Radio choices plus a Markdown-aware text box with live preview.

5. Free text — no choices, just a typed answer (Markdown supported, with preview). Used for free-form values such as a change-ticket id or a release note.

6. Series (sliding modal) — several questions published on the same build at once. The modal shows a numbered pager (‹ Prev · 1 / 3 · Next › plus clickable pips); answering advances to the next slide, and in-progress typing is preserved as you page back and forth.

The same surface is just as useful with no AI in the loop — the modal is identical, only who answers differs, so these need no separate screenshots:

• Manual deploy approval — a Jenkinsfile calls askInteractive with Approve/Reject choices; a release manager clicks Approve in the bell or the job-page box. The classic change gate, now with an in-UI signal instead of a silent pause.
• Choice-driven configuration — pick one of several environments / targets / release tags; the returned id drives the rest of the pipeline (if (answer == 'prod') { … }).
• Free-text capture for the record — collect a change-ticket id or a deploy note and attach it to the build as an audit trail — no agent required.
• Existing input steps, lit up — turn on inputStepBridge and every native input in your current pipelines gains the bell / badge / modal with zero pipeline edits (see Bridging existing input steps).
• Answered by another system — a non-AI script, a ChatOps bot, or an upstream CI job answers via the REST API (POST …/answer) instead of a human clicking — the same permission checks apply.
• Time-boxed approval — set slaMinutes so an unattended gate auto-expires (throws) instead of pausing forever.

Beyond yes/no questions, two steps cover the "review an artifact" and "show the results" loops (each has its own section: interactiveView, interactiveOutput):

• Review an AI‑generated document — an agent writes release notes / a design doc / a runbook; interactiveView(file: 'notes.md', wait: true) publishes it for a Confluence‑style review. A human leaves inline comments and clicks Request changes; the step returns those comments so the agent regenerates and republishes a new version.
• Approve a plan or a PR before it lands — publish a Terraform plan, a migration script, or a diff for line‑by‑line review; Approve lets the pipeline proceed, Reject stops it, Acknowledge just records that it was seen.
• Review a whole folder of generated files — point interactiveView at a dir / includes glob (one review per match) when a build emits many files (e.g. generated configs) that may or may not exist ahead of time.
• Read‑only publication — mode: 'info' publishes a file as a durable, commentable reference without a decision gate.

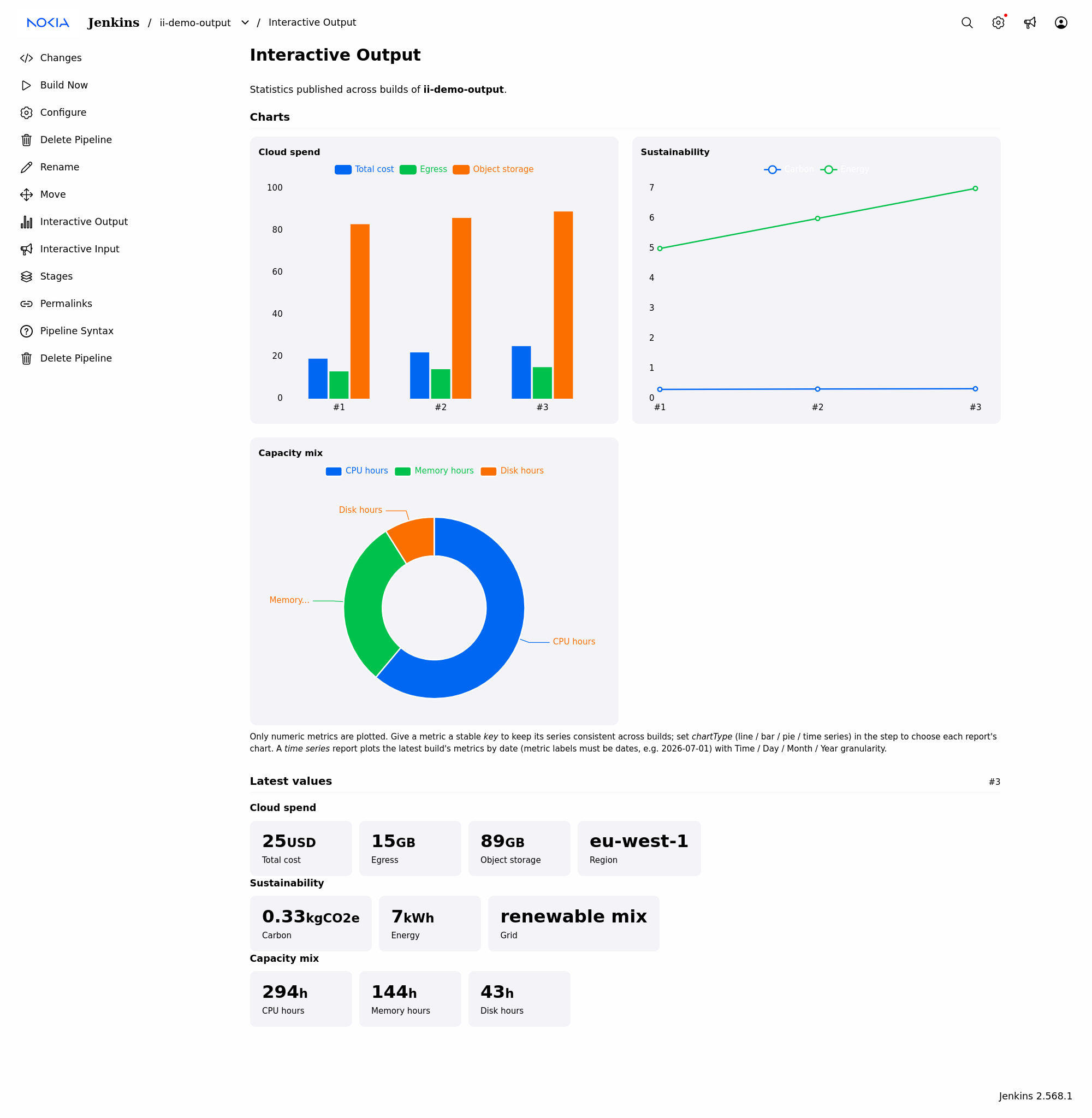

• Per‑build cost / carbon / resource dashboard — interactiveOutput records KPIs (cloud cost, carbon footprint, CPU‑hours, …) as cards + a filterable table on the build page and a trend chart across builds on the job page — non‑blocking, typically in a post block.

The idea is simple: your AI agent is doing some work, it reaches a point where a person must decide, so it stops and asks a human — and the plugin shows that question in Jenkins. The agent waits, the human clicks an answer, and the agent carries on with that answer.

The agent asks by calling a custom tool (explained just below). Cursor SDK is used here as one example only — the same pattern works with any AI agent app or framework, in any programming language.

The snippets below are the essential wiring: an agent that exposes an ask_human (and ask_human_series) tool, and a pipeline that turns each tool call into an askInteractive(...) step. Set CURSOR_API_KEY, then run one stage per shape.

A custom tool (some frameworks call it a function tool, a function call, or tool use) is just a function you register with your agent. You give it a name, a short description, and the inputs it accepts; the model then calls it by name — passing JSON arguments — whenever it decides it needs that capability. Here, the tool's job is "ask a human, and wait for the answer."

For this plugin, a good ask_human tool has four parts:

1. Name — something the model will understand, e.g. ask_human (plus ask_human_series for a batch of questions).
2. Description — tells the model when to use it, e.g. "Ask the human one question and block until they answer."
3. Inputs (schema) — prompt (the question text, required), optional choices (a list of {id, label} options to pick from), and optional allow_free_text (allow a typed answer). These three inputs are what choose the modal shape (see the scenarios above).
4. What it does when called (execute) — it must:
   • send the question to Jenkins — call the plugin's POST REST API, or use a small file-queue bridge;
   • wait (block) until a human answers in the modal — this is the important part: the agent should pause here, not continue;
   • return the answer as a string (the chosen id, or the typed text) so the model can act on it.

That is the whole contract. Everything else is just which choices / allow_free_text you pass.

The plugin never talks to a model itself — it only speaks HTTP + JSON. So anything that can make an HTTP request can answer a question, and you can wire the ask_human tool into whatever you already use, for example:

• Cursor SDK (used in the sample below), OpenAI (function calling / Assistants), Anthropic Claude (tool use), Google Gemini / ADK (function calling), LangChain / LangGraph, LlamaIndex, CrewAI, Microsoft AutoGen, Semantic Kernel, or the Vercel AI SDK.
• Or no framework at all — a plain script that POSTs to the REST API, or an MCP server that exposes the same "ask a human" tool.

Because it is just HTTP, the programming language is your choice: Python, JavaScript / TypeScript (Node), Java / Kotlin, Go, Rust, C# / .NET, Ruby, PHP, or Bash + curl all work equally well. The example below happens to use Python + Cursor SDK.

import os
from cursor_sdk import Agent, CustomTool, CustomToolContext, LocalAgentOptions

def ask_human(args: dict, ctx: CustomToolContext) -> str:
    # Hand the question to Jenkins (via the plugin's REST API, or a small
    # file-queue bridge) and block until a human answers in the modal.
    # Returns the chosen choice id, or the typed free text.
    return publish_to_jenkins_and_wait(args)      # your impl: POST to the REST API, then wait

tools = {
    "ask_human": CustomTool(
        description=(
            "Ask the human ONE question and block until they answer. Pass 'prompt', "
            "optional 'choices' (list of {id,label}), and optional 'allow_free_text'. "
            "Returns the chosen id, or the typed text."
        ),
        input_schema={
            "type": "object",
            "properties": {
                "prompt": {"type": "string"},
                "choices": {
                    "type": "array",
                    "items": {
                        "type": "object",
                        "properties": {"id": {"type": "string"}, "label": {"type": "string"}},
                        "required": ["id", "label"],
                    },
                },
                "allow_free_text": {"type": "boolean"},
            },
            "required": ["prompt"],
        },
        execute=ask_human,
    ),
}

with Agent.create(
    model="sonnet",
    api_key=os.environ["CURSOR_API_KEY"],
    local=LocalAgentOptions(cwd=".", custom_tools=tools),
) as agent:
    agent.send("You are a deploy agent. When you need a human decision, call ask_human.")

Only choices and allow_free_text change between shapes — the plugin renders the matching modal. Each block is the argument object the model passes to the tool:

# 1) Approve / Deny  ── tool: ask_human  →  returns "approve" or "deny"
{"prompt": "Approve deploy of build to PRODUCTION?",
 "choices": [{"id": "approve", "label": "Approve"},
             {"id": "deny", "label": "Deny"}],
 "allow_free_text": False}

# 2) Single option  ── tool: ask_human  →  returns "ack"
{"prompt": "Maintenance window starts now. Acknowledge to continue.",
 "choices": [{"id": "ack", "label": "Acknowledge"}],
 "allow_free_text": False}

# 3) Multiple choice  ── tool: ask_human  →  returns "dev" | "staging" | "prod"
{"prompt": "Which environment should I deploy to?",
 "choices": [{"id": "dev", "label": "Dev"},
             {"id": "staging", "label": "Staging"},
             {"id": "prod", "label": "Production"}],
 "allow_free_text": False}

# 4) Multiple choice + user input  ── tool: ask_human  →  a listed id OR typed text
{"prompt": "Pick a release tag, or type your own:",
 "choices": [{"id": "latest", "label": "latest"},
             {"id": "stable", "label": "stable"}],
 "allow_free_text": True}

# 5) Free text  ── tool: ask_human  →  the typed change-ticket id
{"prompt": "Enter the change ticket id to attach to this deploy:",
 "choices": [],
 "allow_free_text": True}

# 6) Series (sliding modal)  ── tool: ask_human_series  →  JSON array of {prompt, answer}
{"questions": [
    {"prompt": "Which environment?",
     "choices": [{"id": "staging", "label": "Staging"},
                 {"id": "prod", "label": "Production"}]},
    {"prompt": "Run database migrations?",
     "choices": [{"id": "yes", "label": "Yes"}, {"id": "no", "label": "No"}]},
    {"prompt": "Deploy note (free text):", "allow_free_text": True}]}

Publishing all the series questions at once is what makes several questions wait on the same build at the same time — and that is what the plugin shows as the numbered sliding modal (shape 6 above).

Base path: /interactive-input/api/v1/. All responses are JSON. Mutating endpoints require POST and a Jenkins CSRF crumb.

BASE=http://<jenkins>
# 1) CSRF crumb (session-bound — keep the cookie jar)
CRUMB=$(curl -s -c cj.txt -u "$USER:$TOKEN" \
  "$BASE/crumbIssuer/api/json" \
  | python3 -c "import json,sys;d=json.load(sys.stdin);print(d['crumbRequestField']+':'+d['crumb'])")

# 2) List questions I can answer
curl -s -b cj.txt -u "$USER:$TOKEN" "$BASE/interactive-input/api/v1/questions"
# {"count":1,"questions":[{"id":"…","prompt":"Deploy build to production?","choices":[…],"allowFreeText":true,"jobFullName":"deploy","buildNumber":42,"status":"WAITING","remainingMs":1740000, …}]}

# 3) Answer with a choice
curl -s -b cj.txt -u "$USER:$TOKEN" -H "$CRUMB" -H 'Content-Type: application/json' \
  --data '{"choiceId":"approve"}' \
  "$BASE/interactive-input/api/v1/questions/<id>/answer"
# {"id":"…","status":"ANSWERED","answer":{"choiceId":"approve","answeredBy":"darnr", …}}

Answer envelope — choiceId must match a declared choice (or the __deny__ sentinel); freeText is only accepted when the question set allowFreeText: true. Invalid answers → 400; unauthorised → 403; already‑settled → 409.

Turn on inputStepBridge and every pending native input is mirrored into the bell, modal, and REST API — with no pipeline changes:

• Parameter‑less inputs get a single Approve / Proceed choice; answering it (via modal or REST) forwards to the native step's proceed, honouring any submitterParameter.
• Deny forwards to the native abort.
• Parameterised inputs are surfaced read‑only with a deep link to the build's input form (full in‑modal parameter answering is a v0.2 item).
• If a user answers via the built‑in UI instead, the next reconciliation drops the now‑settled mirror.

This is the fastest way to get notifications for pipelines you don't want to rewrite.

The Pipeline Stage View and Pipeline Graph View render their built‑in "paused for input" prompt off the native input step's InputAction. Because the bridge mirrors real native input steps (rather than replacing them), that indicator keeps working exactly as before — and the same pause now also surfaces in the bell, the job‑page box and the build‑history badge. So the recommended way to get an "input needed" marker in the stage/graph view is:

• Use a native input step with inputStepBridge on → the stage/graph view shows the standard input‑required cell and our surfaces mirror it.
• Use askInteractive when you want the richer surface (Markdown context, per‑choice rationale, SLA, REST answering) → it advertises the pause through the job‑page box, the build‑history badge (both pulsing), the sidebar page, the bell, and the anchored console link. askInteractive does not draw the native stage‑view cell, because that cell is owned by the core input/stage‑view plumbing.

A visual tour of where to configure the plugin and what it looks like in use. (The Configuration section below is the equivalent as-code / JCasC reference.)

Where: Manage Jenkins → Appearance → Interactive Input. This is the home for the notification surfaces' look-and-feel (kept out of functional config, per Jenkins core guidance).

• Global notification centre (header bell) — turns on the header bell. On the dashboard it lists every question you can answer; inside a pipeline (a job/build page) it narrows to that pipeline's questions. Off by default, so notifications surface per pipeline / per build rather than at one Jenkins-wide point.
• Per-project notification centre — the per-pipeline / per-build surfaces: a sidebar page on each job, an "awaiting input" badge next to the waiting build in the build-history list, and the per-build audit view. On by default.
• Show the inline box on the job page — the large "Interactive Input" box on a job/pipeline page while it has a pending question. Turn it off to keep the badge + sidebar page without the big box. On by default (requires the per-project centre above).
• Show a pending-count badge in the browser tab — when on (and the header bell above is enabled), the number of questions you can answer is mirrored in the browser tab. If the site favicon is same-origin, a small red dot is painted on top of it (the tab title is left unchanged); if the favicon is cross-origin or missing — a browser cannot read its pixels into a canvas, e.g. a favicon hosted on another domain via the Simple Theme plugin — it falls back to a red-circle + "(N)" prefix on the tab title. Either way it never replaces the site favicon. On by default.
• Show the Interactive View card on the build page — the compact "Interactive View" card that lists a build's published reviews (with status and comment count) on the experimental build-overview page. Turn it off to hide the card and its build-page tab; the dedicated Interactive View page, sidebar link, and build-history badge stay reachable. On by default.
• Show the Interactive Output card on the build page — the "Interactive Output" per-build metrics card: the native overview card on the experimental build page and the summary row on the classic build page. Turn it off to hide both; the dedicated Interactive Output page stays reachable. On by default.
• Notification icon — the icon used across the bell, badge, and sidebar link, chosen from seven meaning-matched Ionicons (megaphone (default), speech bubble, raised hand, pull-request, hourglass, alert, classic bell). The capture above is set to Raised hand — human action needed.

The two authorization switches that govern who may see and answer a question — Show each user only their own build's notifications and Only the build starter may answer (others can view) — are functional (not look-and-feel) settings and now live under Manage Jenkins → System → Interactive Input (see Configuration).

Where: <your pipeline> → Configure → Interactive Input notifications (opt-in). Add one or more channels; each is its own extension with its own fields.

• Email — comma-separated recipients. Sent through Jenkins Mailer SMTP (Manage Jenkins → System → E-mail Notification), so Microsoft 365 / Outlook / Exchange work when that SMTP is configured (smtp.office365.com or on-prem). There is no Microsoft Graph API.
• Microsoft Teams / Slack — pick a Secret text credential whose value is the incoming-webhook URL. The URL is never stored on the job. Notify-only: the payload is job metadata plus a deep link; nobody answers from Slack/Teams.
• When: askInteractive (and bridged input) on submit; interactiveView when notify: true (the default). Sends off-thread so the pipeline is not blocked. Requires a configured Jenkins URL.
• Recipients are whoever the job author typed — they may not have Item/Read on the job (same model as the Mailer publisher).

Job JCasC / Job DSL shape:

properties:
  - interactiveInputNotifications:
      channels:
        - email:
            recipients: "ops@example.com"
        - slack:
            webhookCredentialsId: "slack-incoming-webhook"
        - teams:
            webhookCredentialsId: "teams-incoming-webhook"

Where: open any build → Interactive Input in the left sidebar (also reachable from the anchored link the step writes into the build Console Output).

This is the per-build audit view — the compliance trail for every human-in-the-loop question that build raised. Each row shows the prompt, a status badge (ANSWERED / waiting / aborted / expired), who started the build, and — once settled — who answered, what they chose (or typed), and when. It records both askInteractive questions and any native input steps surfaced by the bridge, so "what was asked and what was decided" stays answerable long after the build finishes.

Settings are split in two, following Jenkins core guidance to keep look‑and‑feel out of functional config:

• Functional flags — the feature toggles, polling/SLA/retention, and the two authorization switches (user‑scoped notifications, lock‑to‑build‑starter) live under Manage Jenkins → System → Interactive Input (unclassified.interactiveInput).
• Notification‑surface visibility (the global bell + its scoping, the per‑project centre, the job‑page box, the browser‑tab badge, the Interactive View / Interactive Output build‑page cards, and the icon) lives under Manage Jenkins → Appearance → Interactive Input (appearance.interactiveInputAppearance).

unclassified:
  interactiveInput:
    features:
      askInteractiveStep: true   # the askInteractive step
      richModal: true            # rich modal (else deep-link to the build)
      restApi: true              # /interactive-input/api/v1/**
      inputStepBridge: false     # surface existing native input steps (opt-in)
      dashboardTile: false       # reserved for v0.2
      interactiveView: true      # the interactiveView review step + surfaces
      interactiveOutput: true    # the interactiveOutput statistics step + surfaces
      htmlRendering: true        # offer a Rendered view for HTML documents (isolated frame)
    polling:
      intervalSeconds: 15        # poll cadence for the bell and per-project widgets (min 5)
    sla:
      defaultMinutes: 0          # default SLA when a step omits slaMinutes (0 = no SLA)
    retentionDays: 7             # keep answered/aborted/expired questions this long
    automationReplyName: "AI response"  # display label for automation replies posted under an interactiveView comment
    # Authorization (default off; only ever RESTRICT access on top of the Job/Build + submitter checks)
    userScopedNotifications: false     # show each viewer only their own build's questions (+ ownerless)
    lockToBuildStarter: false          # only the build starter (or an admin) may answer; others view-only

# Look-and-feel — Manage Jenkins → Appearance → Interactive Input
appearance:
  interactiveInputAppearance:
    notificationCentre: false          # global header bell (off by default). On dashboard = all
                                       # answerable questions; inside a pipeline = only that pipeline's.
    perProjectCentre: true             # per-project surfaces (sidebar page, build badge, audit view)
    jobPageBox: true                   # the large inline box on the job page (independent of the badge)
    tabNotificationBadge: true         # mirror the pending count in the browser tab (favicon dot if same-origin, else title)
    viewBuildCard: true                # Interactive View card on the build page (experimental overview)
    outputBuildCard: true              # Interactive Output card on the build page (experimental card + classic summary)
    icon: "megaphone"                  # one of: chatbubble-ellipses, hand-left, git-pull-request,
                                       # megaphone, hourglass, alert-circle, notifications

Defaults: the step, per‑project notification centre, the job‑page box, the modal, and the REST API are on; the global bell (notificationCentre), the bridge, and the dashboard tile are off. Per‑pipeline outbound channels (email / Teams / Slack) live on each pipeline's Configure page.

• Permissions split answer and abort. Answering requires Item/Build on the source job, or — when a submitterFilter is set — membership in that user/group set (with the usual Overall/Administer bypass). Aborting the question (which aborts the run) requires Item/Cancel, or submitter membership when a filter is set. Item/Build alone is not enough to abort. Viewing requires Item/Read.
• CSRF everywhere it mutates. Every answer/abort/preview is @RequirePOST, so Jenkins' crumb filter applies.
• No existence leak. GET /questions/{id} returns 404 whether the question is missing or you lack Item/Read.
• Admin‑gated global view. ?all=true requires Overall/Administer; the default list is scoped to what you can answer.
• Safe Markdown. contextMarkdown and free‑text are rendered with commonmark configured to escape raw HTML and sanitise URLs (javascript: and friends are stripped). The client inserts only server‑sanitised HTML via innerHTML; all other user data goes through textContent.
• Only /health is anonymous (a liveness probe that leaks nothing but a pending count).

See docs/SECURITY.md for the threat model and how to report issues.

Which programming languages are supported? Two different things are involved, so it helps to split them:

• ✅ Answering a question — any language. The bell, modal, REST API, and bridge only speak HTTP + JSON. So the program that answers (your app under test, your deploy tool, your AI agent) can be written in any language that has an HTTP client: Python, JavaScript / TypeScript (Node), Java / Kotlin, Go, Rust, C# / .NET, Ruby, PHP, or Bash + curl. This is what makes interactive-ci a general "wait for a human" point, not a Groovy‑only feature.
• ⚠️ Declaring the pause — Jenkins Pipeline (Groovy). Like every Jenkins step, askInteractive is called from a Jenkinsfile (Groovy). You do not rewrite your app in Groovy — your program, in any language, takes part by (a) being run by that pipeline and/or (b) answering through the REST API. The pipeline is only the place where the pause is declared.
• ➡️ Already have native input steps in other pipelines? Turn on inputStepBridge and they show up in the bell with no code changes.

Restrictions (v0.1):

Full dependency inventory: docs/BILL_OF_MATERIALS.md.

# Requires JDK 21+ and Maven 3.8.6+
mvn -B -ntp clean verify      # runs the full test suite + SpotBugs
ls target/interactive-ci.hpi

Behind a corporate proxy, configure ~/.m2/settings.xml and point Maven at https://repo.jenkins-ci.org/public/.

Released under the MIT License © 2026 Darniss <darniss.mail@gmail.com>.

Maintainer: Darniss — darniss.mail@gmail.com
