ORAS SCM

This plugin provides an SCM (hudson.scm.SCM) implementation that checks out a repository packaged as an OCI artifact and pulled with ORAS.

It is the counterpart to pipeline-cps-oras: that plugin lets a pipeline job fetch its Jenkinsfile from an OCI registry, but jobs configured that way have no SCM attached, so a checkout scm step (implicit at the start of every declarative agent block) has nothing to check out. This plugin fills that gap by making the repository artifact itself a real SCM that Jenkins can check out, poll, and record against a build, exactly like Git or Subversion.

Both plugins can serve a pipeline script packaged as an application/vnd.jenkins.repo.manifest.v1+json artifact, and they are NOT mutually exclusive - a job can use pipeline-cps-oras to fetch its Jenkinsfile and this plugin, separately, to check out the rest of the repository. As a rule of thumb:

• pipeline-cps-oras is the simpler choice for ad-hoc or generated pipelines where you just need to run a script and don't care about SCM semantics.
• oras-scm (this plugin) is recommended once you are packaging full repositories for regular CI activity, because it integrates with Jenkins' existing SCM checkout machinery instead of working around it: checkout scm (implicit or explicit), changelogs, SCM polling/triggers, lightweight checkout, and the standard SCM dropdowns on Freestyle and "Pipeline script from SCM" jobs all work as they would with Git or Subversion.

The plugin registers a new SCM named ORAS, selectable anywhere Jenkins lets you pick an SCM: a Freestyle project's "Source Code Management" section, a Multibranch pipeline, or the SCM dropdown of a "Pipeline script from SCM" job.

Credentials are optional if using an unsecured registry, otherwise provide a username/password credential.

In order to be checked out, the artifact must have the following media type: application/vnd.jenkins.repo.manifest.v1+json

You can push such an artifact using the ORAS CLI from the root of the repository you want to check out:

oras push localhost:5000/hello:latest --artifact-type application/vnd.jenkins.repo.manifest.v1+json .

The whole content of the artifact is extracted into the build workspace on every checkout, and the manifest digest is used to detect changes when polling.

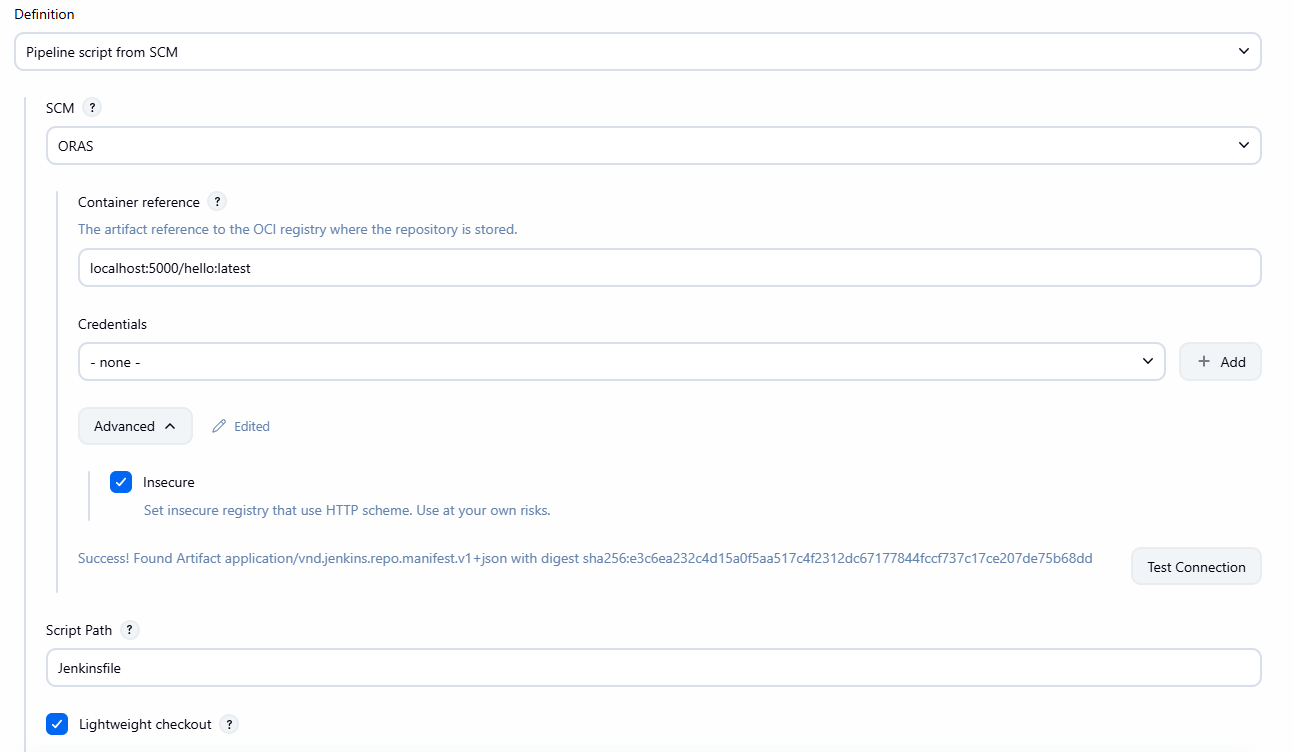

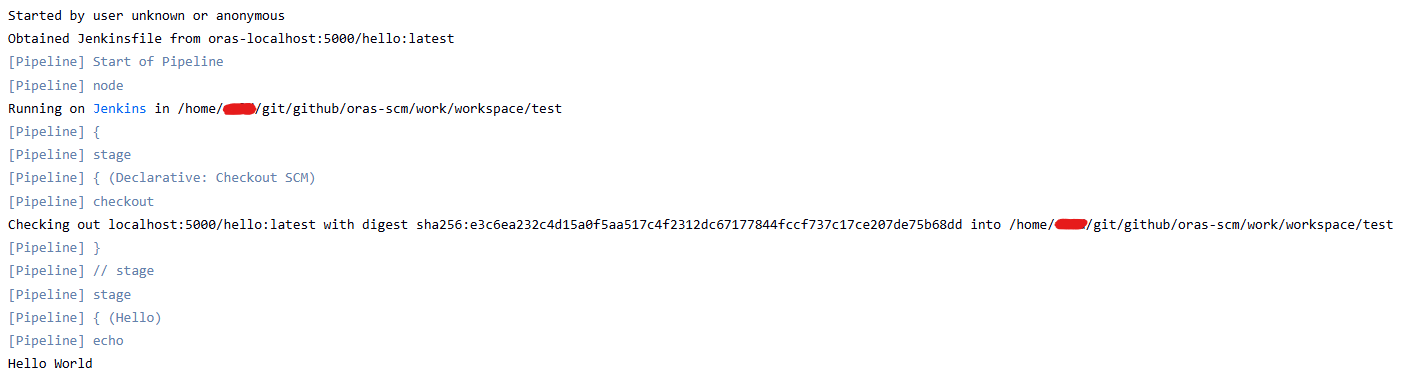

In the job configuration, under Pipeline, choose the Pipeline script from SCM definition, then pick ORAS in the SCM dropdown and fill in the container reference, credentials, and script path (e.g. Jenkinsfile). Because the job now has a real SCM attached, the implicit checkout scm that declarative pipelines perform before the first stage works as expected, populating the workspace with the rest of the repository too — no explicit checkout step needed in the Jenkinsfile itself.

If your pipeline is not itself SCM-backed (for example when using pipeline-cps-oras to fetch the script), you can still check out a repository artifact explicitly with the generic checkout step, either using the @Symbol-based shorthand:

pipeline {
    agent any
    stages {
        stage('Checkout') {
            steps {
                checkout oras(containerRef: 'localhost:5000/hello:latest', insecure: true)
            }
        }
        stage('Build') {
            steps {
                sh './build.sh'
            }
        }
    }
}

Select ORAS in the "Source Code Management" section of a Freestyle project and fill in the container reference, credentials, and insecure flag as needed.

Report issues and enhancements in the Jenkins issue tracker.

Refer to our contribution guidelines

Licensed under MIT, see LICENSE
