Portainer

Deploy Docker Compose / Swarm stacks and Kubernetes workloads from Jenkins through the Portainer API — one Access token, Freestyle or Pipeline, clear build summaries.

Who it’s for: platform and CI engineers who already run Portainer for day-2 ops and want Jenkins jobs to create or update stacks, Swarm configs/secrets, manifests, and Helm releases without hand-driving the Portainer UI.

Plugin id: portainer · Artifact: portainer · JCasC / System symbol: portainerApi

Configure Portainer once under Manage Jenkins → System, then add build steps that talk to the Portainer API on the controller (Jenkins proxy + credentials). Each step can Inherit that connection or use a Manual URL + API key for a specific job.

Typical flows:

• Ship a Compose or Swarm stack from Git (or paste YAML) and upsert it on an endpoint
• Ensure Swarm configs from Git and secrets from Vault before the stack redeploy
• Apply Kubernetes manifests or install/upgrade Helm charts on Kubernetes environments
• Run Validate only to preflight connections without mutating Portainer

Build logs stay scannable: short INFO phases and a Summary with outcome=created|updated|… (and related fields). Secrets, tokens, and YAML bodies are never dumped to the console.

• System global config — Portainer URL + Secret text Access token (portainerApi); connectivity is checked on build preflight (no System Test connection button)
• Inherit / Manual Portainer connection on every step

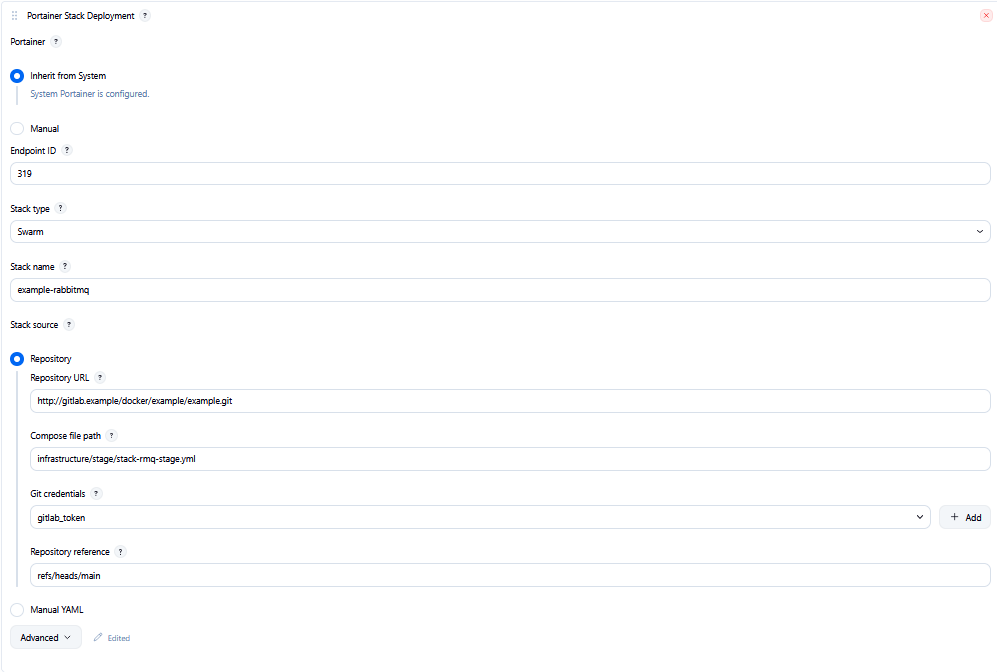

• Portainer Stack Deployment (portainerStack) — Compose or Swarm; Git repository or manual YAML; optional env merge / prune / repull

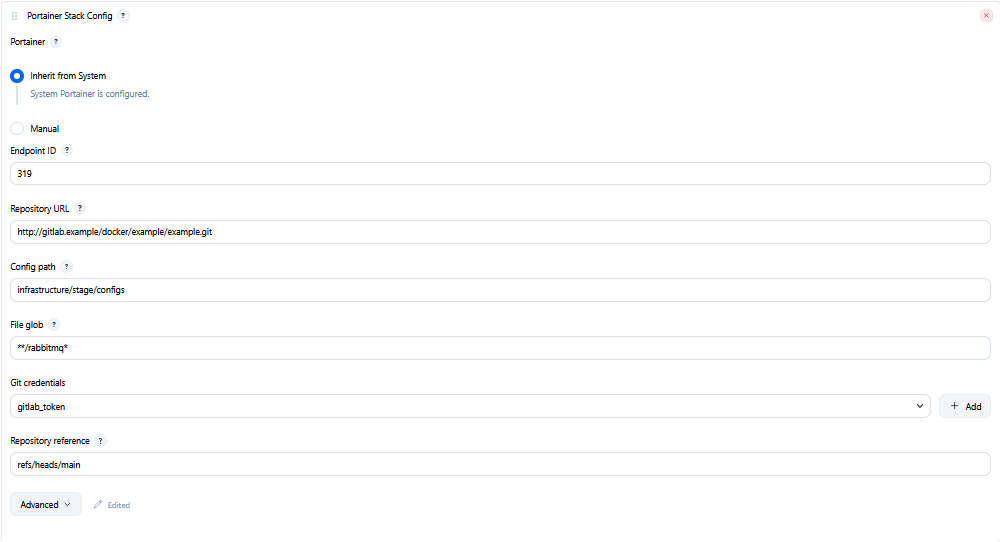

• Portainer Stack Config (portainerStackConfig, alias portainerSwarmConfig) — Swarm Docker configs from Git (content-hash names; run before Stack when using external: true)

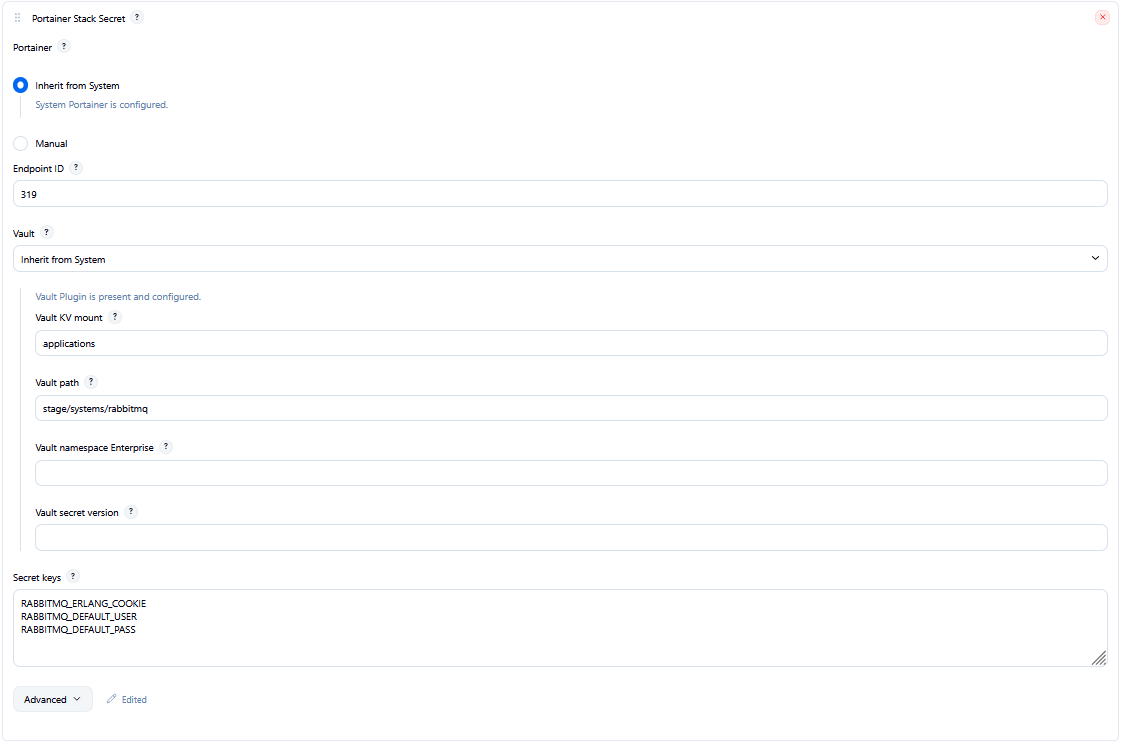

• Portainer Stack Secret (portainerStackSecret, alias portainerSwarmSecret) — Swarm Docker secrets from Vault KV v2 (content-hash names; run before Config + Stack when needed)
• Portainer Manifest Deployment (portainerManifest) — Kubernetes manifests from Git or manual YAML

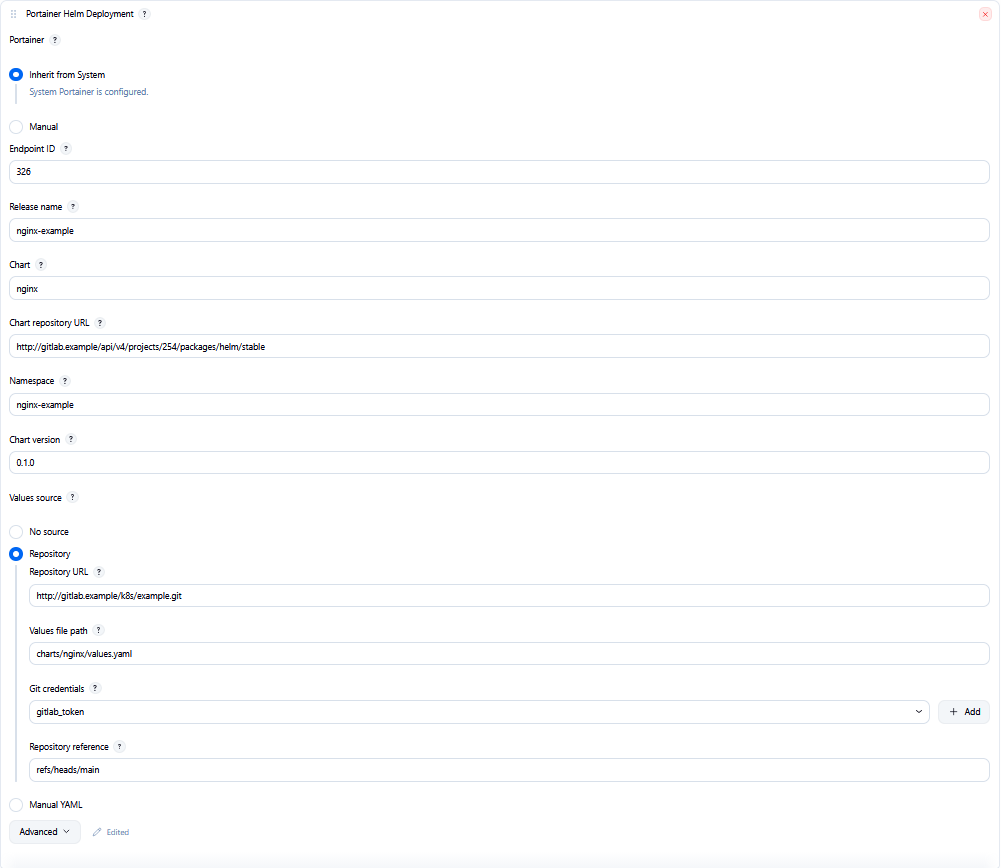

• Portainer Helm Deployment (portainerHelm) — Helm install / upgrade; values from chart defaults, Git, or inline YAML
• Vault — optional overlay into Stack Env[] (Not connected / Inherit via HashiCorp Vault Plugin / Manual AppRole); Stack Secret reads KV for Docker secrets (not Stack Env)
• validateOnly — resolve + Portainer (and Vault when connected) preflight; log what would happen; no create/update
• Summary logs — created / updated (and step-specific counts) with duration-friendly summaries

Optional step forms:

1. In Portainer: My account → Access tokens → Add access token. Copy the token once.
2. In Jenkins: Manage Jenkins → Credentials → add Secret text (e.g. ID portainer-api-key) with the token.
3. Manage Jenkins → System → Portainer:
   • Display name: e.g. Production Portainer
   • Portainer URL: https://portainer.example:9443 (API base — typically :9000 HTTP or :9443 HTTPS)
   • API key credentials: select the Secret text credential
4. Save (Save does not call Portainer; builds run preflight).
5. Add a Freestyle build step, or use Pipeline:

pipeline {
    agent none
    stages {
        stage('Deploy stack') {
            steps {
                portainerStack(
                    endpointId: '1',
                    stackType: 'compose',
                    stackName: 'myapp',
                    repositoryUrl: 'https://gitlab.example/group/stack.git',
                    composeFilePath: 'docker-compose.yml',
                    repositoryReferenceName: 'refs/heads/main',
                    gitCredentialsId: 'git-clone',
                    env: "IMAGE_TAG=${env.BUILD_NUMBER}"
                )
            }
        }
    }
}

Default Portainer mode is Inherit. Default Vault mode on Stack is Not connected.

More examples:

• examples/PipelineSyntax.portainerStack.groovy
• examples/PipelineSyntax.portainerStackConfig.groovy
• examples/PipelineSyntax.portainerStackSecret.groovy
• examples/PipelineSyntax.portainerManifest.groovy
• examples/PipelineSyntax.portainerHelm.groovy

Suggested Swarm order: Stack Secret (if used) → Stack Config → Stack Deployment.

• Jenkins 2.541.3+
• Portainer 2.39.3+
• JDK truststore must trust Portainer (and Vault, if used) TLS certificates — no skip-SSL
• Optional: HashiCorp Vault Plugin (tested with 383.v7529eea_ef531) — only for Vault Inherit on Stack / Secret

Most steps run on the controller and do not need an agent workspace. Exceptions: Stack Config always clones on an agent (git on PATH); Helm needs a workspace only when Values source is Repository.

1. Manage Jenkins → Plugins → Available plugins → search Portainer (portainer).
2. Or browse plugins.jenkins.io/portainer.
3. Advanced / air-gapped: upload the .hpi from a release if you cannot reach the Update Center.

After install, open Manage Jenkins → System → Portainer, then add the build steps above.

Report vulnerabilities through the Jenkins security process — see SECURITY.md. Do not open public GitHub issues for security reports.

The plugin uses Jenkins credentials and the controller HTTP client with redirect following disabled; Access tokens, Vault AppRole material, and YAML/secret bodies are not echoed in logs.

• Issues: jenkinsci/portainer-plugin
• Security: SECURITY.md · jenkins.io/security
• Screenshots: docs/images/
• Pipeline examples: examples/

MIT
